| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,000 pcs
|
12000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output | |
| Output Frequency Range | |
| Package / Case | |
| Storage Temperature | |
| Supply Voltage | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width | |
| current_consumption (Typical @ 125 MHz, 1.8 V, no load) | |
| current_consumption (Typical @ 20 MHz, 1.8 V, no load) |

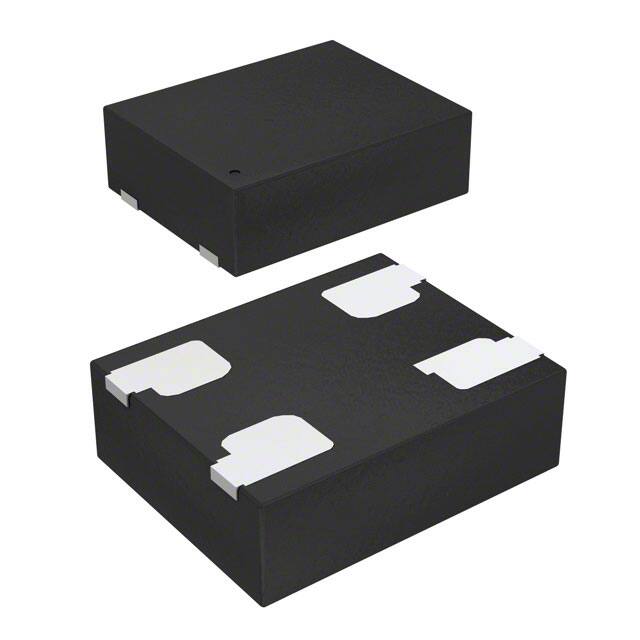

The ASTMHTD-25.000MHZ-AJ-E-T3 is a high-temperature, programmable SMD MEMS oscillator from Abracon LLC. It operates at a frequency of 25 MHz with LVCMOS output logic and a frequency stability of ±20ppm. The device supports a wide supply voltage range of 2.25V to 3.63V, making it suitable for various power domains.
This oscillator features an enable/disable function and consumes low current: typically 3.5 mA at 20 MHz and 1.8V, and 4.9 mA at 125 MHz and 1.8V. It is housed in a compact 4-SMD, No Lead package measuring 2.50mm x 2.00mm x 0.80mm, ideal for space-constrained designs.
Designed for surface mount assembly, the ASTMHTD series is suitable for high-temperature applications and offers an output frequency range from 1 MHz to 137 MHz. The part is RoHS3 compliant and has an MSL rating of 1 (unlimited).
The frequency is 25 MHz.
The output logic is LVCMOS.
The operating temperature range is -40°C to 125°C.
The supply voltage range is 2.25V to 3.63V.
The package is 4-SMD, No Lead with dimensions 2.50mm x 2.00mm x 0.80mm.
Yes, it is RoHS3 compliant (unverified).
The frequency stability is ±20ppm.
