| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
713 pcs
|
713 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Resistance | |
| Current | |
| Driver Circuitry | |
| Frequency | |
| Hand Soldering Temperature | |
| Height | |
| Housing Material | |
| Input Type | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Packaging Type | |
| Port Location | |
| Reflow Soldering Temperature | |
| Sound Pressure Level (SPL) | |
| Standard Package Quantity | |
| Storage Temperature | |
| Technology | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Range | |
| Weight | |
| Width |

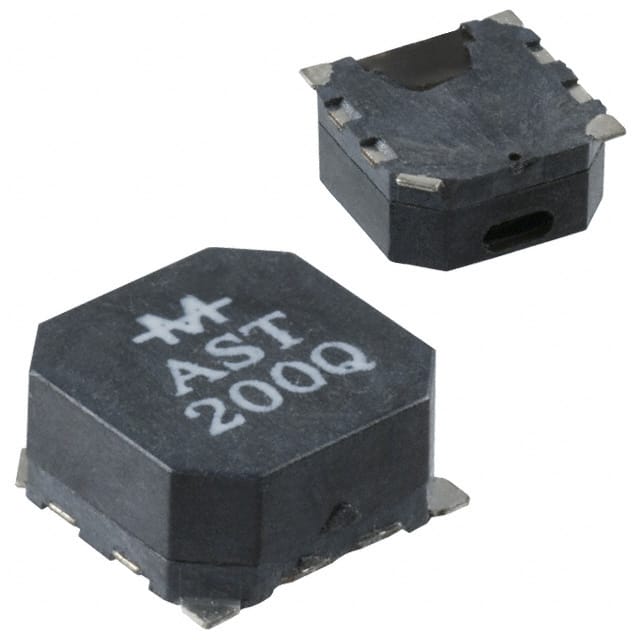

The AST200Q is a magnetic transducer buzzer from Mallory Sonalert Products Inc. It operates as a single tone buzzer with a nominal oscillation frequency of 2.73kHz. The device is externally driven, requiring a peak-to-peak square wave input signal.
Rated at 3V (2V to 4V operating range), the buzzer delivers a minimum sound pressure level of 85dB when measured at 10cm. Maximum current consumption is 80mA at rated voltage. The coil resistance is 15Ω ±2Ω.
The buzzer is housed in a black LCP plastic resin package, measuring 8.7mm x 8.7mm with a height of 4.2mm. It features side port location and solder pad termination for surface mount assembly. The operating temperature range is -20°C to +70°C, with storage from -30°C to +90°C.
Parts are supplied in tubes of 35 pieces. The AST200Q is RoHS compliant and unaffected by REACH. Moisture sensitivity level is MSL 1 (unlimited). Note: The datasheet indicates RoHS compliance but no certificate URL is available for verification.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.84 | $5.84 |
| 10+ | $4.47 | $4.47 |
| 48+ | $3.77 | $3.77 |
| 96+ | $3.50 | $3.50 |
| 144+ | $3.35 | $3.35 |
| 288+ | $3.12 | $3.12 |
| 528+ | $2.93 | $2.93 |
| 1,008+ | $2.75 | $2.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 3V (peak-to-peak), with an operating range of 2V to 4V.
The nominal oscillation frequency is 2.73kHz.
The minimum sound pressure level is 85dB at 10cm, measured at rated voltage.
It is a transducer requiring an external peak-to-peak signal drive (externally driven).
It is surface mount with solder pad termination.
The maximum current consumption is 80mA at rated voltage.
The operating temperature range is -20°C to +70°C.
