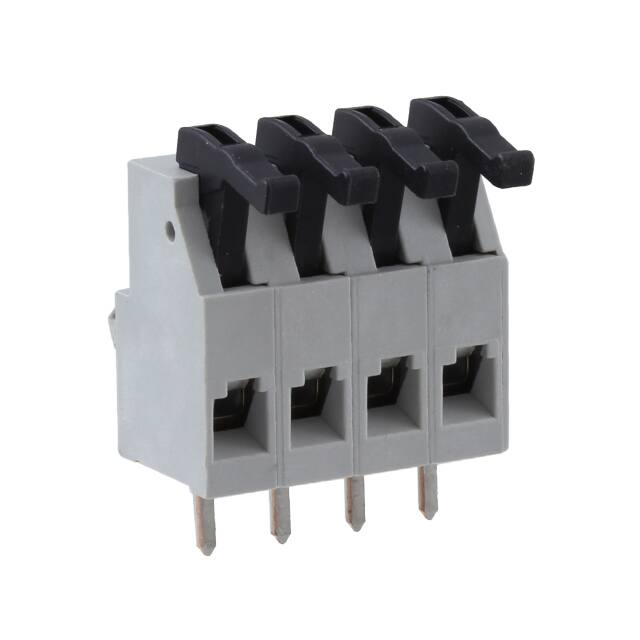

The AST0250404 is a 4-position spring clamp terminal block from METZ CONNECT, part of the AST025 series. It features a 5.00mm pitch and through hole mounting with a 90° direction of connection. The screwless termination uses a spring cage and tension clamp, actuated by a lever for tool-less wiring. The housing is gray polyamide (PA) with a V0 flammability rating and a comparative tracking index (CTI) of 600. The terminal block is rated for 300V and 13A under UL recognition (File No. E121004), and accepts 14-28 AWG solid or stranded wire. The datasheet specifies a rated current of 12A under standard conditions. The operating temperature range is -40°C to 105°C, with an IP20 protection category. Contact material is CuSn with a Ni+Sn surface, and the spring is made of spring steel. The glow wire flammability index (GWFI) is 850°C per IEC 60695-2-12. This terminal block is suitable for wire-to-board connections in industrial control, power distribution, and building automation applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.69 | $3.69 |
| 10+ | $2.63 | $2.63 |
| 25+ | $2.38 | $2.38 |
| 50+ | $2.29 | $2.29 |
| 100+ | $1.92 | $1.92 |
| 250+ | $1.73 | $1.73 |
| 500+ | $1.63 | $1.63 |
| 1,000+ | $1.54 | $1.54 |
| 2,500+ | $1.42 | $1.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions.
The pitch is 5.00mm.
The rated current is 12A per datasheet and 13A per UL approval.
The UL rating is 300V. Additionally, it is rated 250V for overvoltage category II/pollution degree 2.
Through hole mounting.
It accepts 14-28 AWG solid and stranded wire.
The operating temperature range is -40°C to 105°C.
