| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CTI | |
| Clearance/Creepage Distance | |
| Color | |
| Current | |
| Features | |
| Flammability Class | |
| Glow Wire Flammability Index | |
| Industrial Grade | |
| Insulating Material | |
| Insulation Strip Length | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Operating Temperature Range | |
| Pitch | |
| Positions Per Level | |
| Protection Category | |
| Rated Current (Nominal @ General) | |
| Rated Current (Nominal @ UL approval) | |
| Rated Test Voltage | |
| Rated Voltage (Nominal @ Overvoltage III/2, Pollution 2) | |
| Rated Voltage (Nominal @ UL approval) | |
| Solder Pin Length | |
| Solderability | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

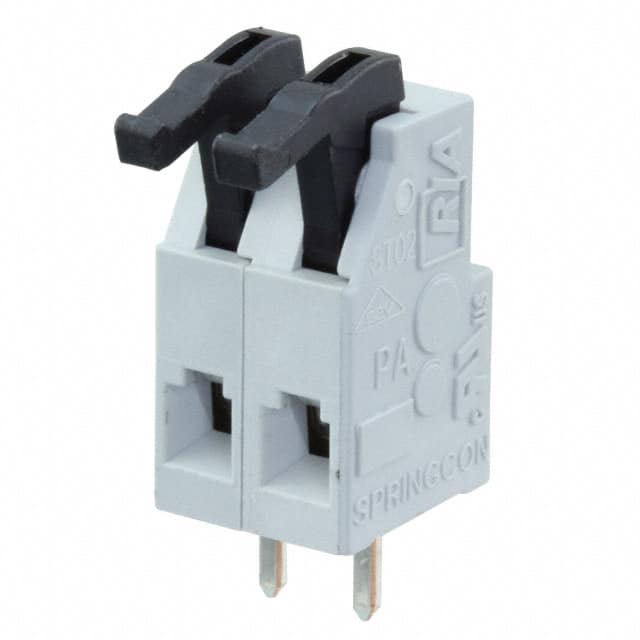

The METZ CONNECT AST0250204 is a 2-position spring clamp terminal block designed for wire-to-board connections. It features a 5.00mm pitch and a horizontal mating orientation relative to the PCB. The terminal block uses a screwless spring cage tension clamp for wire termination, accommodating wire gauges from 14 to 28 AWG.
Electrically, the AST0250204 is rated for a nominal current of 12A and a nominal voltage of 250V (overvoltage category III/2, pollution degree 2). It has a rated test voltage of 2.5 kV and a clearance/creepage distance of 4 mm. The insulating material is PA with a flammability class of V0 and a comparative tracking index (CTI) of 600.
The terminal block is through hole mounted with a solder pin length of 5 mm. It is gray in color and features a lever actuated design for easy wire insertion and removal. The operating temperature range is -40°C to 105°C, and it has an IP20 protection category. The insulation strip length is 6 mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.10 | $2.10 |
| 10+ | $1.52 | $1.52 |
| 25+ | $1.32 | $1.32 |
| 50+ | $1.20 | $1.20 |
| 100+ | $1.09 | $1.09 |
| 250+ | $0.98 | $0.98 |
| 500+ | $0.91 | $0.91 |
| 1,000+ | $0.86 | $0.86 |
| 2,500+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 5.00mm.
The nominal rated current is 12A. The UL rated current is 13A.
The nominal rated voltage is 250V. The UL rated voltage is 300V.
It uses a screwless spring cage, tension clamp termination.
Through hole mounting.
-40°C to 105°C.
14-28 AWG.
