| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,626 pcs
|
1626 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Material | |
| Current Rating | |
| Current Saturation | |
| DC Resistance | |
| Inductance | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Self Resonant Frequency | |
| Shielding | |
| Tolerance | |
| Type |

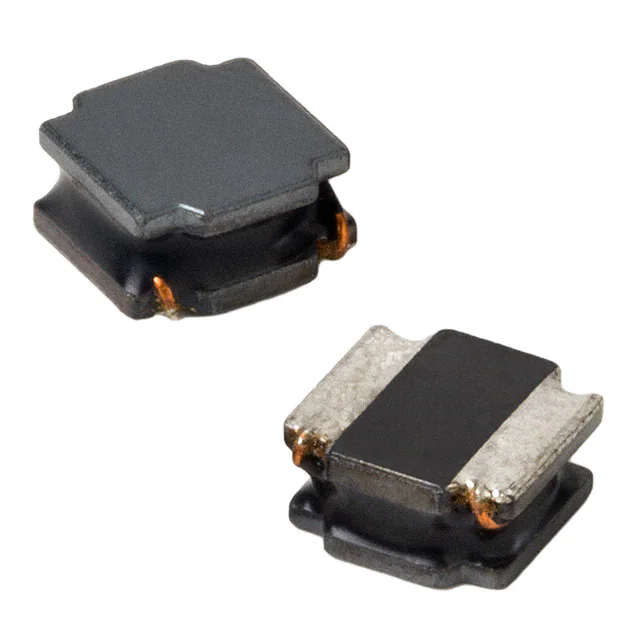

The ASPI-8040S-270M-T from Abracon LLC is a fixed inductor belonging to the ASPI-8040S series. This component features a shielded drum core and wirewound construction, providing a nominal inductance of 27 µH with a tolerance of ±20% at 100 kHz.
Designed for demanding applications, it has a current rating of 2 A and a saturation current of 2.15 A. The DC resistance is specified at 78 mOhm, and the self-resonant frequency is 9.2 MHz. The inductor is built to withstand operating temperatures from -40°C to 125°C.
This component is packaged in a nonstandard case suitable for surface mounting. Its dimensions are 0.315 inches by 0.315 inches (8.00mm x 8.00mm), with a maximum seated height of 0.165 inches (4.20mm). The standard package quantity is 1000 units, available in Tape & Reel or Cut Tape formats.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 27µH, measured at 100kHz.
The rated current is 2A, and the saturation current is 2.15A.
The DC resistance is 78mOhm.
The self-resonant frequency is 9.2MHz.
The inductor is a surface-mount device in a nonstandard package, measuring 8.00mm x 8.00mm with a seated height of 4.20mm.
It operates from -40°C to +125°C.
Yes, it is shielded and uses a ferrite core.
