| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,500 pcs
|
7500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

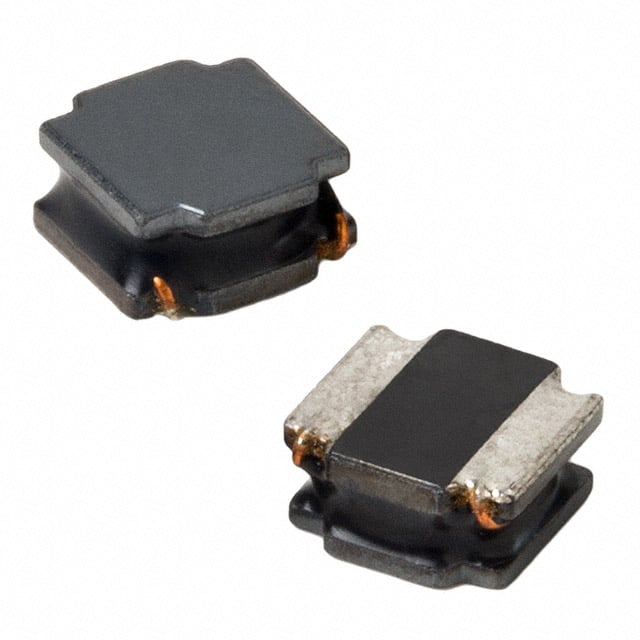

The ASPI-6045S-221M-T is a fixed inductor from Abracon LLC's ASPI-6045S series. It is a shielded, drum core, wirewound inductor with a ferrite core, designed for surface mount applications. The component has an inductance of 220 µH with a tolerance of ±20%.
Key electrical specifications include a nominal current rating of 590 mA, a maximum DC resistance of 834 mOhm, and a minimum self-resonant frequency of 3.5 MHz. The saturation current is 700 mA. The inductor operates over a temperature range of -40°C to 125°C.
The package measures 6.00 mm by 6.00 mm with a height of 4.50 mm, and uses a nonstandard surface mount package. The component is shielded to reduce electromagnetic radiation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.38 | $0.38 |
| 10+ | $0.31 | $0.31 |
| 100+ | $0.26 | $0.26 |
| 1,500+ | $0.20 | $0.20 |
| 3,000+ | $0.19 | $0.19 |
| 4,500+ | $0.19 | $0.19 |
| 7,500+ | $0.18 | $0.18 |
| 10,500+ | $0.17 | $0.17 |
| 15,000+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 220 µH with a tolerance of ±20%.
The rated current is 590 mA (likely Irms, temperature rise current).
The maximum DC resistance is 834 mOhm.
The minimum self-resonant frequency is 3.5 MHz.
The package measures 6.00 mm x 6.00 mm x 4.50 mm and is a nonstandard surface mount package.
