| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

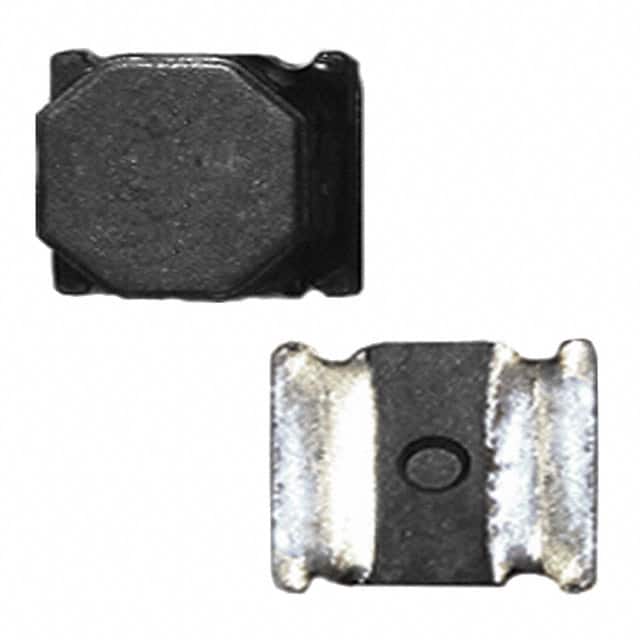

The ASPI-2510-100M-T2 is a fixed inductor from Abracon LLC, part of the ASPI-2510 series. It is a drum core, wirewound inductor with ferrite core material and full shielding. The component offers an inductance of 10 µH with a tolerance of ±20%.
This inductor is rated for a maximum DC current of 550 mA and has a DC resistance (DCR) of 712 mOhm. It is designed for surface mount assembly and comes in a 1008 (2520 Metric) package with a supplier device package of 2510. The dimensions are 2.50 mm length, 2.00 mm width, and 1.00 mm height.
The operating temperature range is -40°C to 125°C, making it suitable for a wide range of environments. The component is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
The inductance is 10 µH with a tolerance of ±20%.
The maximum DC current rating is 550 mA.
The DC resistance is 712 mOhm.
It comes in a 1008 (2520 Metric) surface mount package with supplier device package 2510.
Yes, it is a shielded inductor.
The operating temperature range is -40°C to 125°C.
