| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Standard Package Quantity | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

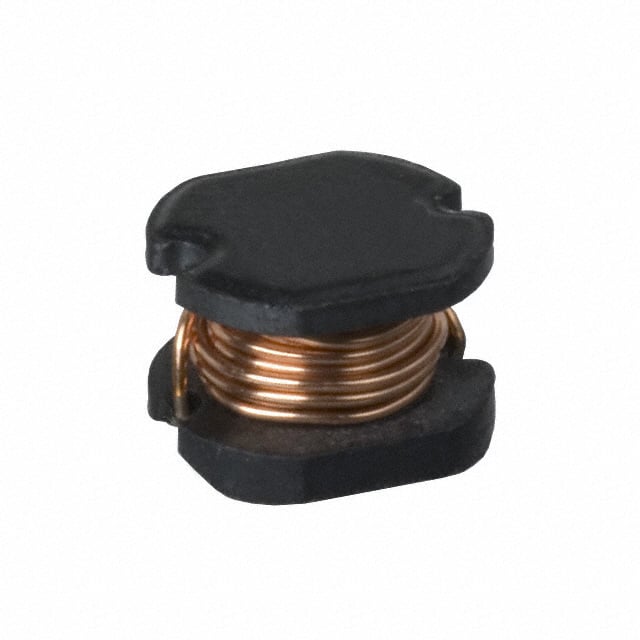

The ASPI-0705-470K-T is a surface mount fixed inductor from Abracon LLC's ASPI-0705 series. It features a drum core, wirewound construction with a ferrite core and is unshielded. The inductor has an inductance of 47 µH at 1 kHz with ±10% tolerance.
This component is rated for a maximum current of 1.1 A and has a DC resistance of 180 mOhm. It operates over a temperature range of -40°C to +125°C and has a storage temperature range of +15°C to +28°C. The part is RoHS compliant and packaged in tape and reel with 1000 pieces per reel.
The inductor measures 7.80 mm x 7.00 mm x 5.50 mm in a nonstandard package. It is designed for surface mount applications and is suitable for use in power supplies, LCD TV sets, PCs, notebooks, and office automation equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.53 | $0.53 |
| 10+ | $0.44 | $0.44 |
| 100+ | $0.36 | $0.36 |
| 1,000+ | $0.29 | $0.29 |
| 2,000+ | $0.28 | $0.28 |
| 3,000+ | $0.27 | $0.27 |
| 5,000+ | $0.26 | $0.26 |
| 7,000+ | $0.27 | $0.27 |
| 10,000+ | $0.24 | $0.24 |
| 16,000+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 47 µH at 1 kHz with ±10% tolerance.
The maximum current rating is 1.1 A.
The maximum DC resistance is 180 mOhm.
The package dimensions are 7.80 mm x 7.00 mm x 5.50 mm in a nonstandard surface mount package.
The operating temperature range is -40°C to +125°C.
No, it is unshielded.
The core material is ferrite.
