| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width |

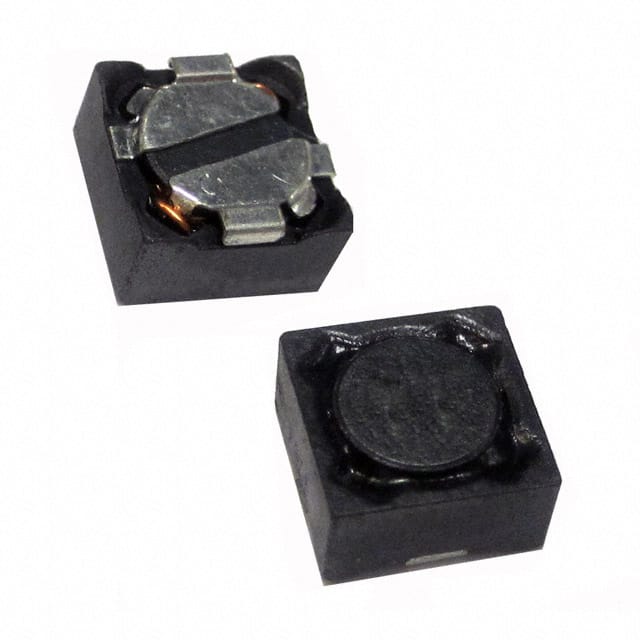

The ASPI-0704S-100M-T is a shielded surface-mount power inductor from Abracon LLC. It features a ferrite drum core and wirewound construction, providing an inductance of 10 µH with ±20% tolerance. The inductor is rated for a DC current of 1.84 A (at which inductance drops 25% or temperature rise reaches 40°C, whichever is lower) and has a maximum DC resistance of 49 mOhm.
This component is designed for power applications requiring low DC resistance and high current handling in a compact footprint. The shielded construction minimizes electromagnetic interference, making it suitable for use in DC-DC converters, power supplies, and other circuits where noise suppression is critical. The operating temperature range is -40°C to +125°C, including self-heating.
The inductor is housed in a nonstandard 7.3 mm x 7.3 mm x 4.5 mm package and is supplied in tape and reel packaging with a standard quantity of 1000 pieces per reel. It is RoHS3 compliant and lead-free, meeting current environmental standards. The maximum operating voltage across the inductor is 400 V.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.07 | $1.07 |
| 10+ | $0.88 | $0.88 |
| 100+ | $0.72 | $0.72 |
| 1,000+ | $0.59 | $0.59 |
| 2,000+ | $0.56 | $0.56 |
| 3,000+ | $0.54 | $0.54 |
| 5,000+ | $0.52 | $0.52 |
| 7,000+ | $0.50 | $0.50 |
| 10,000+ | $0.49 | $0.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 µH at 1 kHz, 0.25 V.
49 mOhm.
1.84 A (DC current at which inductance drops 25% or temperature rise 40°C, whichever is lower).
-40°C to +125°C (including self-heating).
Yes, it is shielded.
7.3 mm x 7.3 mm x 4.5 mm, nonstandard SMD package.
Yes, RoHS3 compliant and lead-free.
