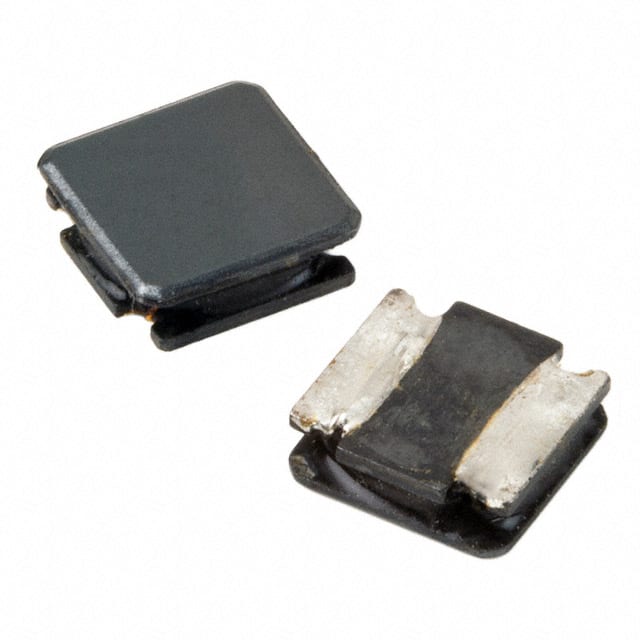

ASPI-0628-3R0N-T1 Shielded SMD power inductor from Abracon's ASPI-0628 series. Features 3µH inductance, 3.4A rated current, and 23mOhm DCR in a compact 6.0x6.0x2.8mm package.
Mfr Part #:

ASPI-0628-3R0N-T1

Available from 1 distributors
Mfr Name: Abracon LLC
Abracon LLC
Shielded SMD power inductor from Abracon's ASPI-0628 series. Features 3µH inductance, 3.4A rated current, and 23mOhm DCR in a compact 6.0x6.0x2.8mm package.
✓ Total Stock: 60 pcs
$ Price Range: $0.17 - $0.37

ASPI-0628-3R0N-T1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
60 pcs
On Request
60 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ASPI-0628-3R0N-T1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
RMS Current
Saturation Current
Shielding
Storage Temperature
Supplier Device Package
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

ASPI-0628-3R0N-T1 Description

Short technical summary and product information.

The ASPI-0628-3R0N-T1 is a shielded SMD chip power inductor from Abracon LLC, part of the ASPI-0628 series. It features a ferrite drum core wirewound construction with magnetic shielding for reduced EMI. Key electrical specifications include 3µH inductance with ±30% tolerance, 3.4A rated current, and 23mOhm DC resistance.



The inductor offers a saturation current of 3.6A (typical) and an RMS current of 3.4A (typical). It operates over a temperature range of -25°C to +120°C. The component is RoHS3 compliant and has MSL Level 1 (unlimited) for moisture sensitivity.



The device is housed in a nonstandard surface mount package measuring 6.00mm x 6.00mm x 2.80mm (max height). It is supplied in tape and reel packaging (1kpcs/reel). Typical applications include mobile phones, portable communication equipment, and digital cameras where low profile and high current handling are required.

ASPI-0628-3R0N-T1 Quick Information

Product Type: Fixed Inductor
Series: ASPI-0628
Canonical Name: ASPI-0628-3R0N-T1 Shielded SMD Power Inductor
Subcategory: Shielded Power Inductor

ASPI-0628-3R0N-T1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 Unlimited
REACH Status: REACH Unaffected

ASPI-0628-3R0N-T1 Estimated Pricing

Qty Low High
1+ $0.37 $0.37
10+ $0.31 $0.31
100+ $0.25 $0.25
1,000+ $0.21 $0.21
2,000+ $0.20 $0.20
3,000+ $0.19 $0.19
5,000+ $0.18 $0.18
7,000+ $0.18 $0.18
10,000+ $0.17 $0.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

ASPI-0628-3R0N-T1 Features

  • Shielded ferrite core wirewound inductor.
  • Rated current of 3.4 amperes.
  • Low 23 milliohm DC resistance.
  • Compact 6x6x2.8mm SMD package.
  • RoHS3 compliant and MSL Level 1.

ASPI-0628-3R0N-T1 Applications

  • Used in mobile phone power circuits.
  • Ideal for portable communication devices.
  • Suitable for digital camera power supplies.
  • Works in DC-DC converter applications.

ASPI-0628-3R0N-T1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance value?

3 µH with ±30% tolerance.

What is the rated current?

3.4 A.

What is the DC resistance?

23 mOhm.

What is the package size?

6.00mm x 6.00mm x 2.80mm (max height) surface mount.

Is the inductor shielded?

Yes, it is shielded.

What is the operating temperature range?

-25°C to +120°C.

What is the saturation current?

3.6 A typical (inductance change ≤ -30%).
