| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
210 pcs
|
210 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
210 pcs
|
210 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

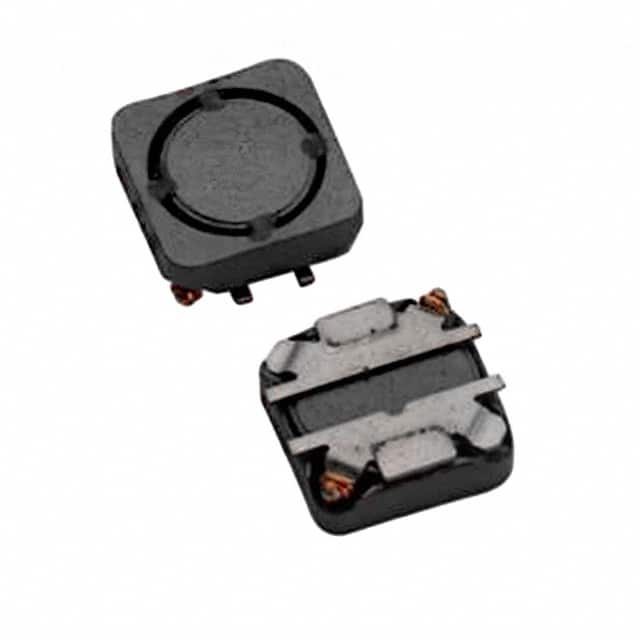

The ASPI-0418S-100M-T3 is a fixed inductor from Abracon LLC, part of the ASPI-0418S series. It is a drum core, wirewound construction inductor with a ferrite core and is fully shielded. The component offers a nominal inductance of 10 µH with a tolerance of ±20%.
Electrically, the inductor is rated for a DC current of 1 A and has a saturation current of 850 mA. The maximum DC resistance (DCR) is 176 mOhm. It is designed for surface mount applications and operates over a temperature range of -25°C to 100°C.
The inductor is housed in a nonstandard SMD package with dimensions of 4.20 mm x 4.20 mm and a height of 1.80 mm. This compact, shielded design makes it suitable for space-constrained power supply and filtering applications where electromagnetic interference (EMI) reduction is important.
The nominal inductance is 10 µH with a tolerance of ±20%.
The rated DC current is 1 A.
The maximum DC resistance is 176 mOhm.
Yes, it is a shielded inductor.
The operating temperature range is -25°C to 100°C.
The package measures 4.20 mm x 4.20 mm with a height of 1.80 mm.
The saturation current is 850 mA.
