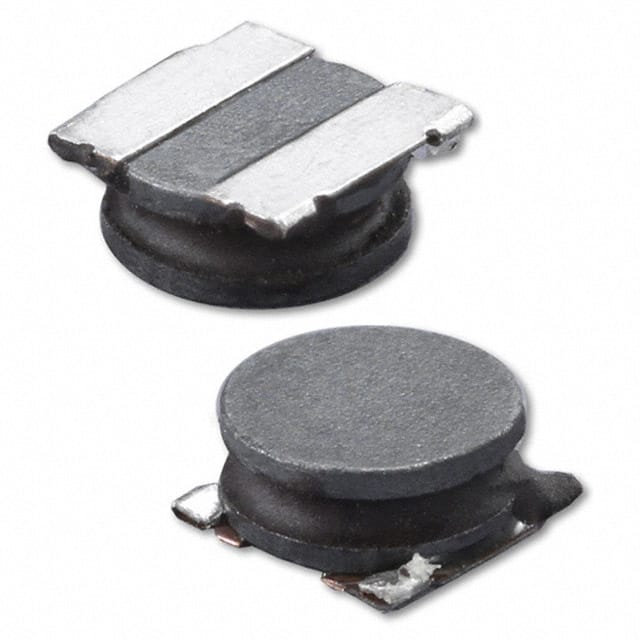

The Abracon ASPI-0418FS-220M-T3 is a low-profile shielded SMD power inductor from the ASPI-0418FS series. It features a ferrite drum core and wirewound construction, providing an inductance of 22 µH with ±20% tolerance. The component is rated for a DC current of 900 mA (temperature rise ΔT=40°C) and has a saturation current of 700 mA (inductance drop ≤30%).
With a typical DC resistance of 290 mΩ and a maximum of 348 mΩ, this inductor offers efficient power handling. Its self-resonant frequency is 15 MHz, making it suitable for DC-DC converter and power line filtering applications. The operating temperature range spans -40°C to +125°C, including self-heating.
The inductor is housed in a compact 4.00 mm x 4.00 mm x 1.80 mm nonstandard SMD package, with a height of 1.80 mm. It is magnetically shielded to reduce EMI and is RoHS compliant. The part is supplied in tape and reel packaging with 3000 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
| 10+ | $0.27 | $0.27 |
| 100+ | $0.22 | $0.22 |
| 1,000+ | $0.18 | $0.18 |
| 3,000+ | $0.16 | $0.16 |
| 6,000+ | $0.15 | $0.15 |
| 9,000+ | $0.15 | $0.15 |
| 15,000+ | $0.14 | $0.14 |
| 21,000+ | $0.14 | $0.14 |
| 30,000+ | $0.13 | $0.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 22 µH with a tolerance of ±20%.
The DC current rating is 900 mA, based on a temperature rise of ΔT=40°C.
The typical DCR is 290 mΩ, with a maximum of 348 mΩ.
The self-resonant frequency is 15 MHz.
The package dimensions are 4.00 mm x 4.00 mm x 1.80 mm (nonstandard SMD).
The operating temperature range is -40°C to +125°C, including self-generated heat.
Yes, the ASPI-0418FS-220M-T3 is RoHS compliant as stated in the datasheet.
