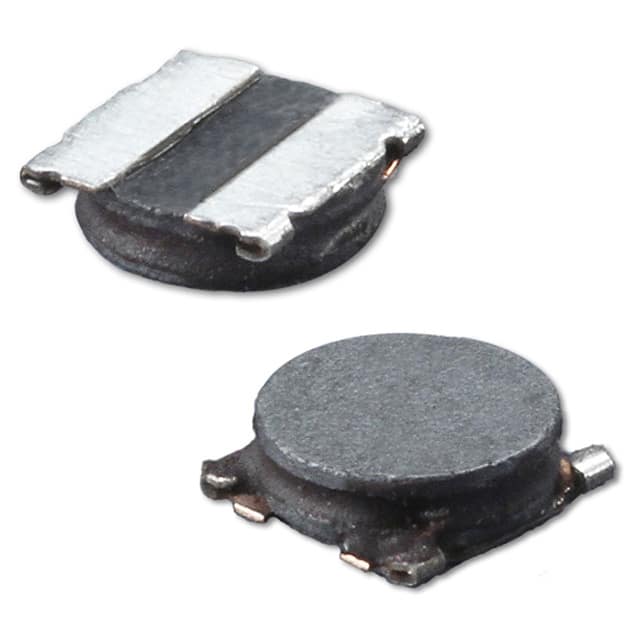

The Abracon ASPI-0310FS-2R2M-T2 is a low profile shielded SMD chip power inductor from the ASPI-0310FS series. It has a nominal inductance of 2.2 µH with a tolerance of ±20% (M code). The inductor is designed for surface mount applications and features a drum core, wirewound construction with a nickel zinc ferrite (NiZn) core.
Key electrical specifications include a typical DC resistance (DCR) of 80 mOhm, a saturation current (Isat) of 1.45 A based on a 30% inductance drop, and a temperature rise current (Irms) of 1.9 A based on a 40°C temperature rise. The component is magnetically shielded using magnetic powder molding, providing high reliability against mechanical stress.
The inductor operates over a temperature range of -40°C to +125°C, including self-generated heat. It is packaged in a nonstandard 3.0 mm x 3.0 mm x 1.0 mm case and is supplied in tape and reel packaging with 2000 pieces per reel.
The nominal inductance is 2.2 µH, measured at 100 kHz and 1 Vrms, with a tolerance of ±20% (M code).
The typical DC resistance is 80 mOhm, with a tolerance of ±30%.
The saturation current (Isat) is 1.45 A, based on a 30% inductance drop. The temperature rise current (Irms) is 1.9 A, based on a 40°C temperature rise.
The operating temperature range is -40°C to +125°C, including self-generated heat.
The package is a nonstandard SMD case measuring 3.00 mm x 3.00 mm x 1.00 mm.
Yes, the datasheet states it is RoHS/RoHS II compliant and Pb free.
The MSL is Level 1 (Unlimited), as per the datasheet.
