| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval | |
| CTI | |
| Clearance/Creepage Distance | |
| Color | |
| Contact Material | |
| Contact Surface | |
| Current | |
| Current Rating | |
| Features | |
| Flammability Rating | |
| Ingress Protection | |
| Insulating Material | |
| Max Number of Poles | |
| Min Number of Poles | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Overvoltage Category | |
| Pitch | |
| Plug Wire Entry | |
| Pollution Degree | |
| Positions Per Level | |
| Rated Test Voltage | |
| Strip Length | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Type | |
| Voltage | |
| Voltage Rating (UL) | |
| Wire Gauge (AWG) | |
| Wire Gauge or Range | |
| voltage_rating (@ Overvoltage Category II, Pollution Degree 2) | |
| voltage_rating (@ Overvoltage Category III, Pollution Degree 3) |

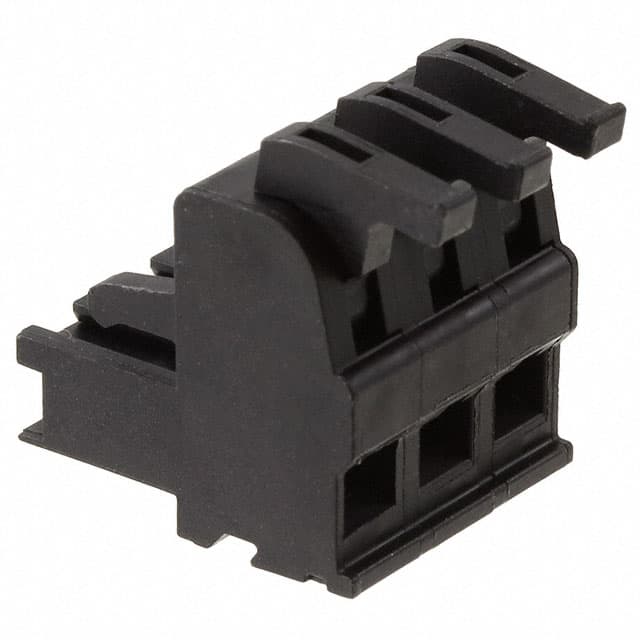

The ASP0460322 is a 3-position pluggable terminal block from METZ CONNECT, part of the ASP046 series. It uses a spring clamp (screwless) termination with a tension clamp mechanism, designed for 5.08mm pitch. The plug accepts wire gauges from 28 AWG to 16 AWG (0.08 mm² to 1.5 mm²) and is rated for 10A continuous current with a UL voltage rating of 300V. IEC ratings are 32V (overvoltage category III, pollution degree 3) and 200V (overvoltage category II, pollution degree 2).
The housing is made of PA46 insulating material with V0 flammability rating, and contacts are CuSn with Sn surface. The plug features a lever actuated design and retention latches on the non-wire side. It is IP20 rated and intended for free hanging (in-line) mounting. The operating temperature range is -40°C to 105°C. The plug is UL approved (File E121004) and is available in 2 to 24 pole versions.
Typical applications include industrial control cabinets, automation systems, and power distribution where reliable, tool-less wiring is required. The spring clamp allows fast and secure connection without special tools, and the lever actuation simplifies wire insertion and removal.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.56 | $3.56 |
| 10+ | $2.54 | $2.54 |
| 25+ | $2.20 | $2.20 |
| 50+ | $2.02 | $2.02 |
| 100+ | $1.85 | $1.85 |
| 250+ | $1.67 | $1.67 |
| 500+ | $1.57 | $1.57 |
| 1,000+ | $1.47 | $1.47 |
| 2,500+ | $1.36 | $1.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 3 positions.
The pitch is 5.08 mm.
The current rating is 10 A.
UL rating: 300 V. IEC ratings: 32 V (overvoltage category III, pollution degree 3) and 200 V (overvoltage category II, pollution degree 2).
Free hanging (in-line) mounting.
Screwless - spring cage, tension clamp.
28 AWG to 16 AWG (0.08 mm² to 1.5 mm²).
