| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating | |
| Features | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packaging Type | |
| Pitch | |
| Standard Package Quantity | |
| Termination Finish | |
| Termination Style | |
| UL Flammability | |
| Voltage Rating |

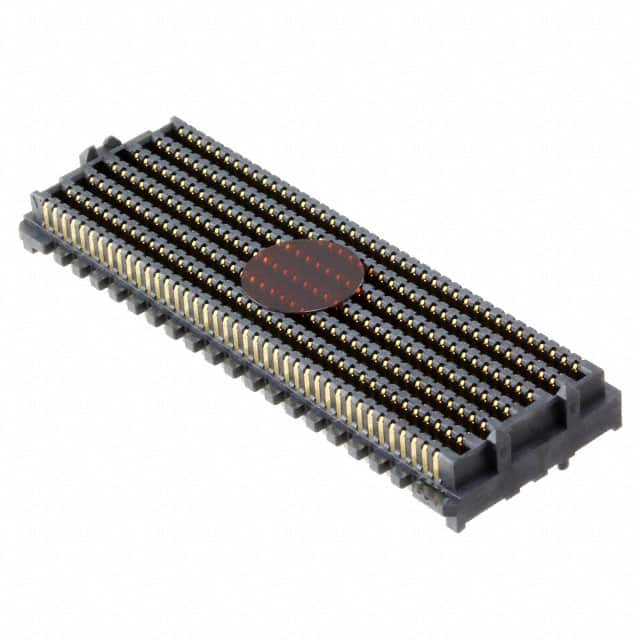

The Samtec ASP-184330-01 is a high-density open-pin-field array connector from the SEARAY family. It features 560 positions arranged in 14 rows at a 1.27mm pitch, with a male plug configuration for surface mount soldering. The connector is designed for high-speed board-to-board applications, supporting data rates up to 56 Gbps PAM4. It utilizes the Edge Rate contact system for reliable performance and high mating cycles. The housing is made of liquid crystal polymer (LCP) with UL 94 V-0 flammability rating, and contacts are copper alloy with 30µin gold plating. The connector supports mated stacking heights from 8.5mm to 11.5mm. It is supplied in tape and reel packaging with 150 pieces per package. The termination finish is tin over nickel. The connector is lead-free and RoHS3 compliant (unverified). It is suitable for applications requiring high-density interconnects with excellent signal integrity.
| Qty | Low | High |
|---|---|---|
| 1+ | $47.37 | $47.37 |
| 10+ | $45.01 | $45.01 |
| 25+ | $42.17 | $42.17 |
| 50+ | $35.42 | $35.42 |
| 100+ | $27.29 | $27.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.27mm (0.050").
560 positions.
2.7A maximum per contact.
240 VAC / 339 VDC maximum.
Surface mount.
Gold, 30µin thickness.
8.5mm, 9.5mm, 10mm, 11mm, 11.5mm.
