| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating | |
| Data Rate | |
| Features | |
| Halogen Free | |
| Height Above Board | |
| Insulator Material | |
| Mated Stacking Heights | |
| Mating Cycles | |
| Minimum Pushout Force | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Plating Contact Area | |
| Plating Remainder | |
| Solder Charge Termination | |
| Standard Package Quantity | |
| Tape & Reel | |
| VITA Standard | |
| Voltage Rating |

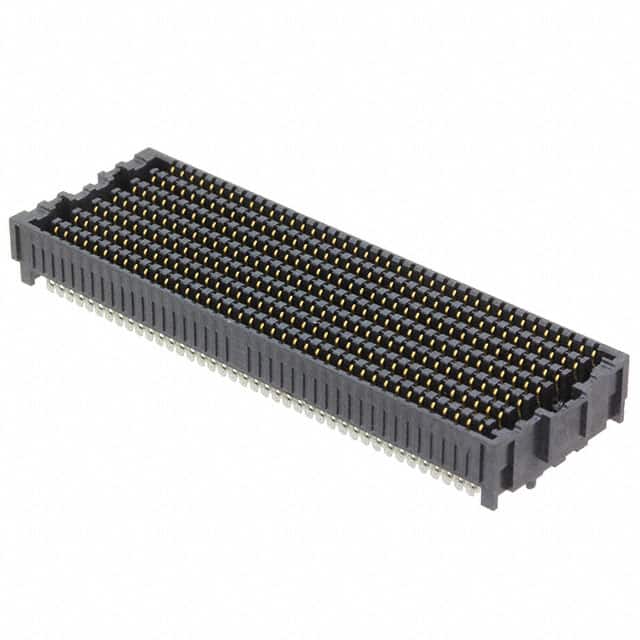

The Samtec ASP-184329-01 is a 560-position high density array socket from the SEARAY SEAF series. It features a 1.27mm (0.050") pitch and a female connector type with 14 rows. The socket is designed for surface mount mounting and includes a board guide feature.
Electrical specifications include a current rating of 2.7A maximum per contact and a voltage rating of 240 VAC / 339 VDC maximum. The connector supports data rates up to 56 Gbps PAM4, making it suitable for high-speed applications. It is rated for 5,000 mating cycles and an operating temperature of 150°C.
The contact material is Brush Alloy 390 HT with a gold finish of 30.0µin (0.76µm) over nickel. The insulator is made of Vectra E135i liquid crystal polymer in black. The socket is packaged in SEAX packaging with 150 parts per package and is designed for tape and reel handling.
| Qty | Low | High |
|---|---|---|
| 1+ | $28.03 | $28.03 |
| 10+ | $27.60 | $27.60 |
| 25+ | $25.28 | $25.28 |
| 50+ | $25.10 | $25.10 |
| 100+ | $24.98 | $24.98 |
| 150+ | $23.15 | $23.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ASP-184329-01 has 560 positions arranged in 14 rows.
The pitch is 1.27mm (0.050").
The current rating is 2.7A maximum per contact.
The voltage rating is 240 VAC / 339 VDC maximum.
This connector uses surface mount mounting.
The maximum operating temperature is 150°C.
It supports data rates up to 56 Gbps PAM4.
