| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Package Type | |
| Pitch | |
| Tape and Reel |

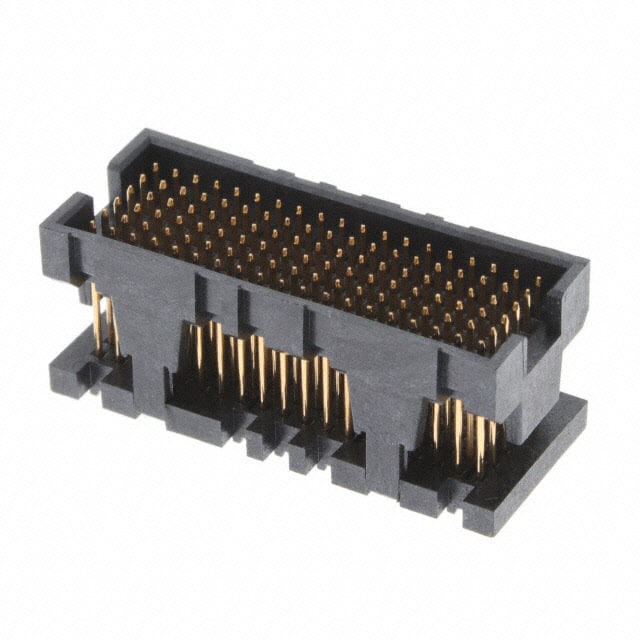

The Samtec ASP-153860-01 is a 114-position array plug connector designed for mezzanine board-to-board applications. It features 6 rows of male pins on a 1.27mm (0.050") pitch, providing a dense interconnect solution. The connector is surface mountable and includes a pick and place cover for automated assembly.
The connector is constructed with brass alloy pins and lead-free solder balls (96.5% Sn/3% Ag/0.5% Cu). The contact area is plated with 30µin gold over nickel, with the remainder gold flash, ensuring reliable connections. The housing is UL 94V-0 rated black liquid crystal polymer.
With a height above board of 0.442" (11.23mm), this connector is suitable for mezzanine stacking applications. It is supplied in tape and reel packaging for high-volume assembly. The design complies with VITA 42 standards for lead-free socket assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $39.27 | $39.27 |
| 10+ | $35.26 | $35.26 |
| 25+ | $33.30 | $33.30 |
| 50+ | $33.00 | $33.00 |
| 100+ | $29.00 | $29.00 |
| 250+ | $27.14 | $27.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
114 positions (6 rows x 19 positions).
1.27mm (0.050").
Surface mount.
0.442" (11.23mm).
Gold plated, 30µin over nickel.
UL 94V-0 rated black liquid crystal polymer.
Yes, it uses lead-free solder balls (96.5% Sn/3% Ag/0.5% Cu).
