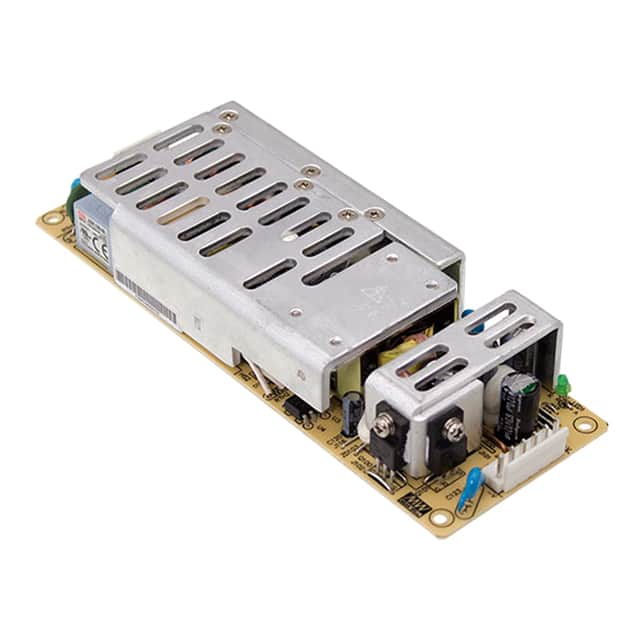

ASP-150-15 The Mean Well USA ASP-150-15 is a 143W AC/DC converter with a 15V output. It features a universal AC input and built-in active PFC function.
Mfr Part #:

ASP-150-15

Mfr Name: Mean Well USA
Mean Well USA
The Mean Well USA ASP-150-15 is a 143W AC/DC converter with a 15V output. It features a universal AC input and built-in active PFC function.
Stock on Request

ASP-150-15 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Dimensions
Efficiency
Features
Height
Length
Mounting Type
No Load Power Consumption
Number of Outputs
Operating Temperature
Output Voltage
Overload Protection
Power (Watts)
Rated Current
Storage Temperature
Tape & Reel
Temperature Coefficient
Type
Voltage
Voltage Range
Weight
Width
View Similar Products (0)

ASP-150-15 Description

Short technical summary and product information.

The Mean Well USA ASP-150-15 is a 150-watt, single-output AC/DC converter designed for open frame applications. It accepts a universal AC input range of 90-264 VAC and features a built-in active Power Factor Correction (PFC) function, ensuring efficient power usage with a power factor greater than 0.95.



This converter delivers a nominal output voltage of 15V with a rated current of 9.5A, providing a total rated power of 142.5W. It offers adjustable output voltage within a range of 14V to 17V, with typical line and load regulation of ±0.5%. Cooling is achieved through free air convection, and it boasts a high power density of 8.4W/in³.



Protection features include overload protection (105-135% rated output power) in hiccup mode, over-voltage protection, and over-temperature protection. The unit is designed for chassis mounting and has dimensions of 169.0mm x 60.7mm x 28.5mm. It is suitable for ITE (Commercial) applications and holds CB, CE, and cURus approval agency certifications.



Key specifications include an efficiency of 88% at full load, a hold-up time of 50ms at 230VAC, and an MTBF of 149.3Khrs minimum. The operating temperature range is -20°C to 60°C with derating.

ASP-150-15 Quick Information

Product Type: AC/DC Converter
Series: ASP-150
Canonical Name: Mean Well USA ASP-150-15 AC/DC Converter
Subcategory: Open Frame

ASP-150-15 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ASP-150-15 Features

  • Universal AC input with active PFC.
  • 15VDC output at 9.5A, 142.5W rated power.
  • Open frame design for chassis mounting.
  • Wide operating temperature range of -20°C to 60°C.
  • High power density of 8.4W/in³.

ASP-150-15 Applications

  • Suitable for ITE (Commercial) applications.
  • Designed for free air convection cooling.
  • Features overload and over-voltage protection.
  • Meets safety standards CB, CE, cURus.

ASP-150-15 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the ASP-150-15?

The nominal output voltage of the ASP-150-15 is 15VDC.

What is the rated current and power for the ASP-150-15?

The ASP-150-15 has a rated current of 9.5A and a rated power of 142.5W.

What is the input voltage range for the ASP-150-15?

The ASP-150-15 accepts a universal input voltage range of 90 to 264 VAC.

Does the ASP-150-15 have Power Factor Correction?

Yes, the ASP-150-15 has a built-in active PFC function with a power factor typically greater than 0.95 at 230VAC.

What are the dimensions of the ASP-150-15?

The dimensions of the ASP-150-15 are 169.0mm x 60.7mm x 28.5mm.

What is the operating temperature range for the ASP-150-15?

The operating temperature range for the ASP-150-15 is -20°C to 60°C, with derating.

What safety standards does the ASP-150-15 comply with?

The ASP-150-15 complies with safety standards UL60950-1 and CB (IEC60950-1), and holds CB, CE, and cURus approval agency certifications.
