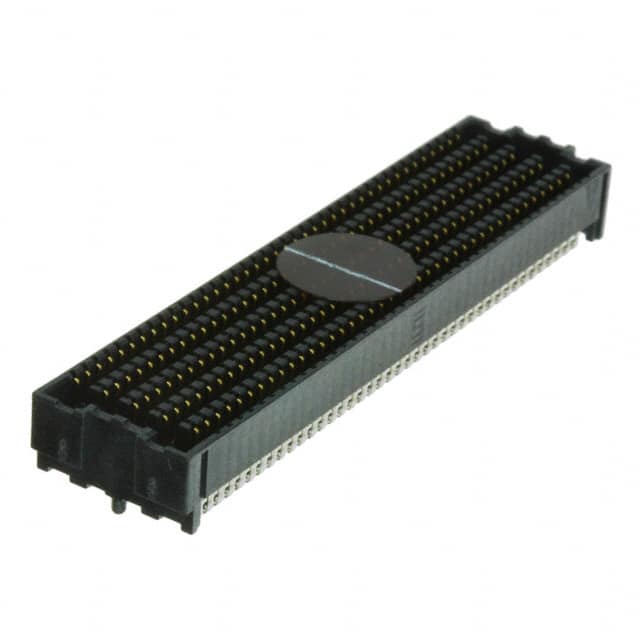

The Samtec ASP-134486-01 is a SEARAY family high-speed high-density open-pin-field array socket with a .050" (1.27 mm) pitch. It features 400 positions arranged in 10 rows and uses the rugged Edge Rate contact system, designed for high mating cycles and 56 Gbps PAM4 data performance. The socket is rated for 2.7 A max current per pin and 240 VAC/339 VDC maximum voltage. It accommodates stack heights from 7 mm to 18.5 mm, providing flexibility for mezzanine board-to-board applications.
The socket is an Extended Life Product, certified for 5,000 mating cycles and an operating temperature up to 150°C. Contacts are plated with SureCoat palladium nickel followed by 30 µin gold flash. The component is surface-mount (SMT) and is supplied in SEAX packaging with 200 pieces per package. It is compliant with RoHS3, MSL 1 (unlimited), and REACH unaffected, though these compliance claims are unverified. The part is VITA 57 compatible and suitable for harsh environment applications per IPC Class 3 acceptability criteria.
The product is designed for high-density routing flexibility in single-ended or differential pair configurations, supporting both signal and power delivery. The open-pin-field layout allows designers to route signals, ground, and power at any pin location.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.03 | $23.03 |
| 10+ | $22.87 | $22.87 |
| 25+ | $19.60 | $19.60 |
| 50+ | $19.45 | $19.45 |
| 200+ | $17.85 | $17.85 |
| 400+ | $17.19 | $17.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27 mm (0.050").
It has 400 positions in 10 rows.
The maximum current rating is 2.7 A per pin. Voltage rating is 240 VAC max and 339 VDC max.
The connector is rated for 56 Gbps PAM4 performance.
The socket is surface mount (SMT).
The certified maximum operating temperature is 150°C. The minimum operating temperature is not specified.
It is an Extended Life Product certified for 5,000 mating cycles minimum.
