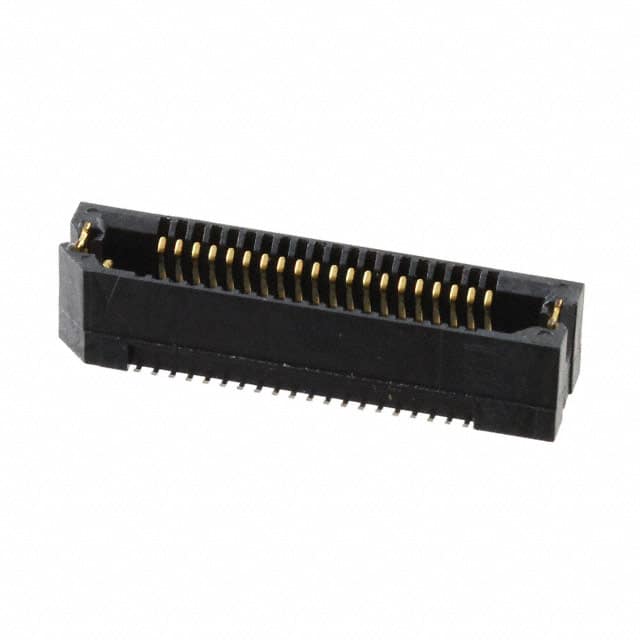

Samtec ASP-130367-01 is a 40-position, 2-row socket connector with gold-plated center strip contacts on a 0.80mm pitch, designed for surface mount applications.

✓ Total Stock: 2 pcs

$ Price Range: $3.95 - $7.89

ASP-130367-01 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	2 pcs On Request	2 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

ASP-130367-01 Description

Short technical summary and product information.

The Samtec ASP-130367-01 is a high-density socket connector featuring 40 positions arranged in 2 rows with a 0.80mm pitch. Designed for surface mount technology (SMT), this connector utilizes gold-plated contacts (30.0µin gold over 50µin nickel) for reliable performance and corrosion resistance.

This connector type, identified by the manufacturer as part of the ERF8 series, is optimized for mezzanine (board-to-board) stacking applications. The housing stands 5.46mm above the board, enabling compact parallel board connections. Additional plating on non-contact areas includes reference tin over nickel, and latch areas receive a separate gold flash.

The connector is packaged in a tray and is designed to comply with VITA 57 standards. It is suitable for use in FPGA mezzanine card (FMC) and other high-speed digital applications where reliable, low-profile interconnections are required.

ASP-130367-01 Quick Information

Product Type: Array Connector

Series: ERF8

Canonical Name: Samtec ASP-130367-01 Socket, Center Strip Contacts, 40 Circuit, 0.80mm Pitch, Surface Mount

Subcategory: Mezzanine Connector

ASP-130367-01 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ASP-130367-01 Estimated Pricing

Qty	Low	High
1+	$7.89	$7.89
25+	$7.25	$7.25
50+	$5.39	$5.39
98+	$3.95	$3.95

Estimated market price range - modelled values for guidance only, not live distributor offers.

ASP-130367-01 Features

40-position, 2-row socket connector.
0.80mm pitch for high-density designs.
Gold-plated contacts (30.0µin).
Surface mount (SMT) mounting style.
VITA 57 standard compliant.

ASP-130367-01 Applications

FPGA mezzanine card (FMC) interfaces.
Compact board-to-board stacking designs.
High-speed digital interconnection systems.
Embedded computing and communication modules.

ASP-130367-01 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the ASP-130367-01 have?

It has 40 positions arranged in 2 rows on a 0.80mm pitch.

What is the pitch of this connector?

The pitch is 0.80mm (0.031 inches).

What type of mounting does this connector use?

It uses surface mount technology (SMT).

What is the contact finish on this connector?

The contact area is plated with 30.0µm gold over 50µm nickel. Non-contact areas have reference tin over 50µm nickel, and latches have 3µm gold over 50µm nickel.

What is the height above the board for this connector?

The height above the board is 5.46mm (0.215 inches).

Is this connector RoHS compliant?

The part is listed as RoHS3 compliant, but this status is unverified. Verify from manufacturer datasheet.

What industry standard does this connector comply with?

This connector is VITA 57 compliant.

Category	Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Name	Samtec Inc.
Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Features	VITA 57
Height Above Board	0.215" (5.46mm)
Lead Spacing	0.8 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Packaging Method	Tray
Pitch	0.80mm (0.031")
Tape & Reel	Yes
