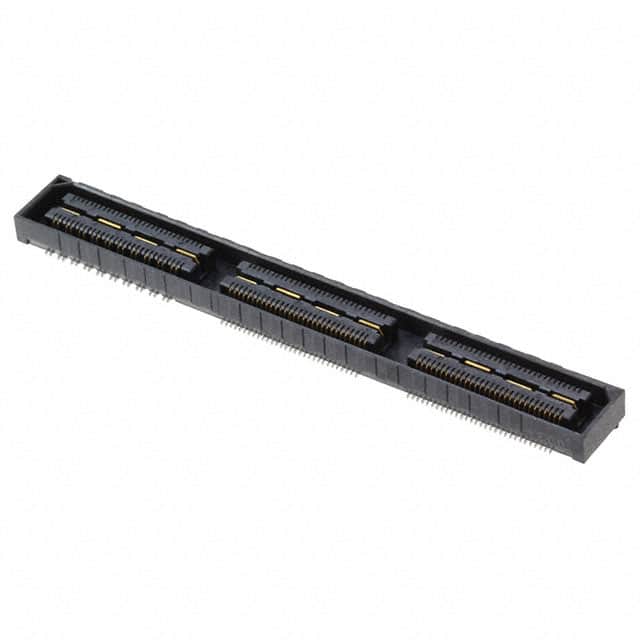

ASP-122953-01 Samtec ASP-122953-01 is a 160 position, 2 row, 0.50mm pitch surface mount receptacle connector with gold flash contacts. It features a board guide and ground bus plane.
Mfr Part #:

ASP-122953-01

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec ASP-122953-01 is a 160 position, 2 row, 0.50mm pitch surface mount receptacle connector with gold flash contacts. It features a board guide and ground bus plane.
✓ Total Stock: 10 pcs
$ Price Range: $8.80 - $13.77

ASP-122953-01 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ASP-122953-01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

ASP-122953-01 Description

Short technical summary and product information.

The Samtec ASP-122953-01 is a high-density board-to-board receptacle connector from the Q Strip® QTH series, designed for mezzanine card applications. It offers 160 positions arranged in 2 rows with a fine 0.50mm pitch, enabling compact and high-speed interconnections.



This surface mount connector features gold flash contacts for reliable signal integrity and durability. It includes a board guide for accurate alignment during assembly and a ground bus plane for improved electrical performance. The connector has a height above board of 0.128 inches (3.25mm), suitable for space-constrained designs.



As part of the Intel® HSMC standard ecosystem, this connector is optimized for high-speed differential signaling and single-ended interfaces. It is ideal for use with FPGA-based mezzanine cards and host boards requiring high I/O density.

ASP-122953-01 Quick Information

Product Type: Board-to-Board Connector
Series: QTH
Canonical Name: Samtec ASP-122953-01 Q Strip® QTH Series 160 Position 0.50mm Pitch Surface Mount Receptacle Connector
Subcategory: Mezzanine Connector

ASP-122953-01 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ASP-122953-01 Estimated Pricing

Qty Low High
1+ $13.77 $13.77
10+ $12.92 $12.92
25+ $11.98 $11.98
528+ $9.82 $9.82
1,008+ $8.80 $8.80

Estimated market price range - modelled values for guidance only, not live distributor offers.

ASP-122953-01 Features

  • 160 positions in 2 rows.
  • 0.50mm pitch for high density.
  • Surface mount with gold flash contacts.
  • Includes board guide and ground bus plane.
  • 0.128 inch height above board.

ASP-122953-01 Applications

  • High-speed mezzanine card interconnects.
  • FPGA-based host board interfaces.
  • Intel® HSMC standard compliant designs.
  • Differential and single-ended signal routing.

ASP-122953-01 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the ASP-122953-01 connector?

The pitch is 0.50mm (0.020 inches).

How many positions does the ASP-122953-01 have?

It has 160 positions arranged in 2 rows.

What is the mounting type for this connector?

It is a surface mount connector.

What contact finish is used on the ASP-122953-01?

The contacts have a gold flash finish.

What features does the ASP-122953-01 include?

It includes a board guide and a ground bus (plane).
