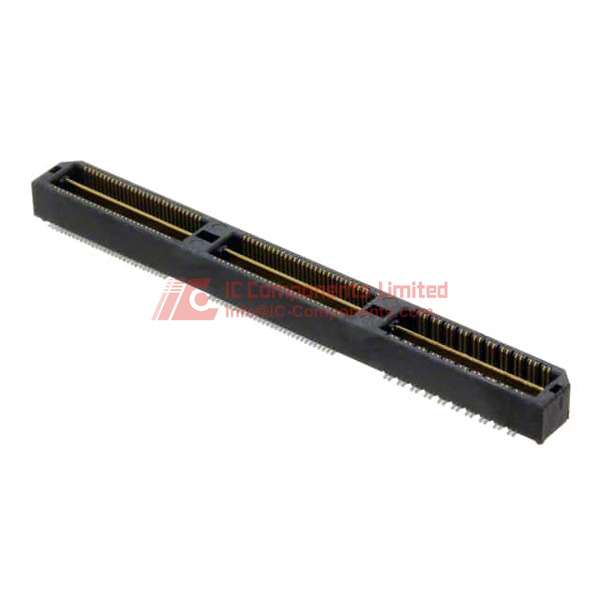

ASP-122952-01 The Samtec Inc. ASP-122952-01 is a 160-position connector header with a 0.50mm pitch. It features a surface mount design and gold contact finish.
Mfr Part #:

ASP-122952-01

Available from 1 distributors
Mfr Name: SMT
SMT
The Samtec Inc. ASP-122952-01 is a 160-position connector header with a 0.50mm pitch. It features a surface mount design and gold contact finish.
✓ Total Stock: 66 pcs
$ Price Range: $1.17

ASP-122952-01 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
66 pcs
On Request
66 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ASP-122952-01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Features
Height Above Board
Mounting Type
Number of Positions
Number of Rows
Pitch
SVHC Present
View Similar Products (0)

ASP-122952-01 Description

Short technical summary and product information.

The Samtec Inc. ASP-122952-01 is a rectangular connector header designed for board-to-board applications. It features 160 positions arranged in 2 rows with a pitch of 0.50mm. The connector is designed for surface mounting and has a height above the board of 4.27mm.



Key specifications include a gold contact finish for reliable conductivity and features such as a board guide and ground bus plane. The connector type is a header with an outer shroud. This component is suitable for various electronic interconnect applications where a compact and high-density connection is required.



Packaging and ESD protection are emphasized, with industry-standard static shielding packaging used to protect sensitive components during handling and transportation. The product is packed in ESD-safe anti-static packaging with clear outer labels for identification.

ASP-122952-01 Quick Information

Product Type: Connector Header
Series: ASP
Canonical Name: Samtec Inc. ASP-122952-01 Connector Header
Subcategory: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

ASP-122952-01 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ASP-122952-01 Estimated Pricing

Qty Low High
1+ $1.17 $1.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

ASP-122952-01 Features

  • 160 positions in 2 rows
  • 0.50mm pitch for high density
  • Surface mount design
  • Gold contact finish
  • Board guide and ground bus features

ASP-122952-01 Applications

  • Ideal for mezzanine board-to-board connections
  • Suitable for compact electronic devices
  • Used in high-density interconnect systems
  • Provides reliable signal and power paths

ASP-122952-01 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the RoHS status of the ASP-122952-01?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this connector?

The MSL is 1 Unlimited.

What is the REACH status for the ASP-122952-01?

The REACH status is REACH Unaffected.

How many positions does the ASP-122952-01 connector have?

The connector has 160 positions.

What is the pitch of the ASP-122952-01 connector?

The pitch is 0.50mm.

What is the height above the board for this connector?

The height above the board is 4.27mm.

What type of contact finish does the ASP-122952-01 use?

It uses a gold contact finish.
