| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Packaging Type | |
| Pitch | |
| Plating Contact Area | |
| Plating Remainder | |
| Prop 65 | |
| Standard Package Qty | |
| Tape & Reel |

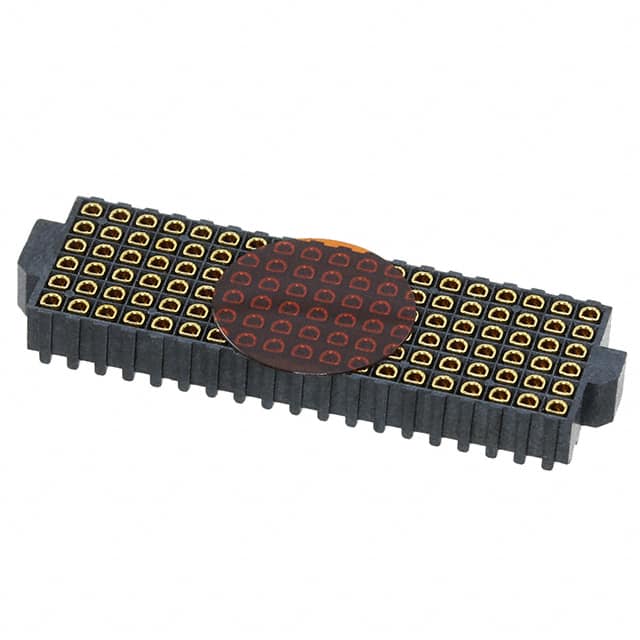

The Samtec ASP-103612-01 is a high-density array female socket connector designed for board-to-board and mezzanine applications. It offers 114 positions arranged in 6 rows with a 1.27mm (0.050") pitch, enabling compact and reliable interconnections.
The connector features gold-plated phosphor bronze contacts with a contact area plating of 30 microinches gold over 50 microinches nickel, ensuring excellent conductivity and corrosion resistance. The housing is molded from UL 94 V0 rated black liquid crystal polymer, providing robust mechanical support and flame retardancy.
Designed for surface mount technology (SMT) assembly, the connector has a height above board of 3.30mm (0.130"). It is supplied in tape and reel packaging with a standard package quantity of 675 parts per reel, suitable for automated pick-and-place processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $41.26 | $41.26 |
| 10+ | $38.63 | $38.63 |
| 25+ | $36.03 | $36.03 |
| 50+ | $32.38 | $32.38 |
| 100+ | $26.09 | $26.09 |
| 250+ | $24.27 | $24.27 |
| 675+ | $22.94 | $22.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27mm (0.050").
It has 114 positions arranged in 6 rows.
Surface mount (SMT).
Gold, with a thickness of 30.0µin (0.76µm) over 50µin nickel on the contact area.
-55°C to +125°C.
Tape and reel, with a standard package quantity of 675 parts per reel.
