| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
86,000 pcs
|
86000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height | |
| Height (Max) | |
| Lead Spacing | |
| Lead Style | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

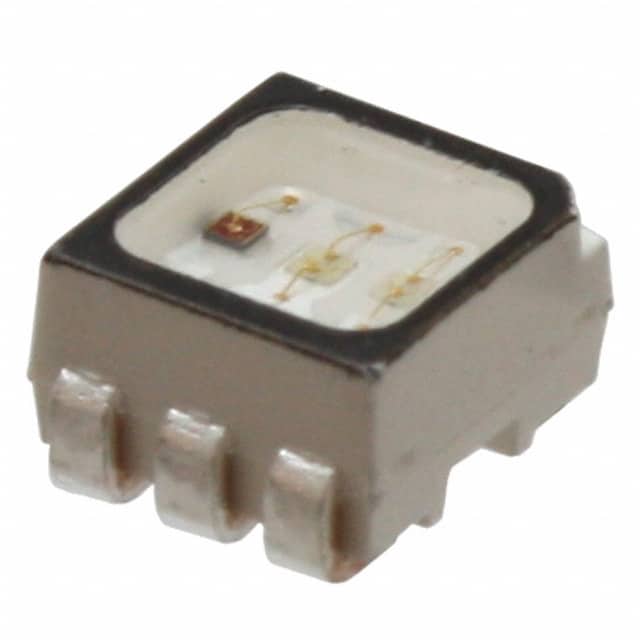

The Broadcom Limited ASMT-YTD2-0BB02 is a discrete RGB LED designed for surface mount applications. It features independent Red, Green, and Blue emitters within a single package.
Key electrical characteristics include a forward voltage of 2.1V for Red and 3.2V for Green and Blue, with a nominal forward current of 20mA for each color. The LED emits light at wavelengths of 629nm (Red), 521nm (Green), and 464nm (Blue). Luminous intensity ratings are 745mcd for Red, 1600mcd for Green, and 380mcd for Blue, all measured at 20mA.
The LED has a clear, colorless lens with a square, flat-top style, providing a wide 120° viewing angle. Its dimensions are 3.00mm in length and 2.80mm in width, with a maximum height of 2.00mm. The package type is 6-PLCC, also described as 6-SMD, J-Lead.
This component is suitable for various indicator and lighting applications where multi-color output is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The package type is 6-PLCC.
The forward voltage for red is 2.1V at 20mA.
Red at 629nm, Green at 521nm, Blue at 464nm.
The luminous intensity of the green LED is 1600mcd.
The maximum height is 2.00mm.
Yes, it is RoHS3 compliant.
