| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,227 pcs
|
2227 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,227 pcs
|
2227 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

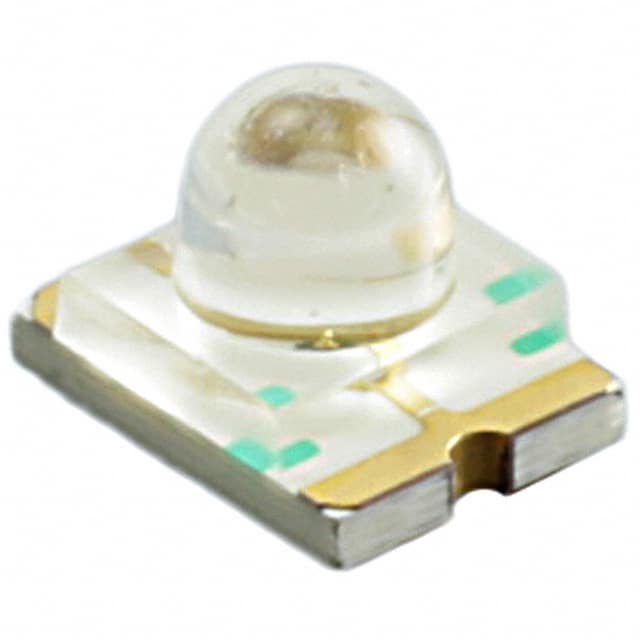

The Broadcom Limited ASMT-BG20-AS000 is a discrete surface mount LED designed for indication purposes. This component emits a green light with a typical forward voltage of 2V and a forward current of 20mA, producing a luminous intensity of 650mcd. It has a domed top lens style and a clear lens color, with a lens diameter of 1.80mm. The LED's dimensions are 3.20mm in length and 2.40mm in width, with a maximum height of 2.40mm. Its viewing angle is 15 degrees, and it operates within the 1209 (3224 Metric) package size. This LED is suitable for various electronic applications requiring visual indication.
Designed for surface mounting, the ASMT-BG20-AS000 offers a compact solution for PCB integration. Its green color and clear, domed lens provide focused light output. The component's specifications, including its wavelength of 565nm and luminous intensity, make it suitable for applications where specific color and brightness are required. The RoHS3 compliant status indicates adherence to environmental regulations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 2V when operated at 20mA.
The typical luminous intensity is 650mcd at 20mA.
The viewing angle is 15 degrees.
It comes in a 1209 (3224 Metric) package for surface mounting.
The product is listed as RoHS3 Compliant.
The MSL is 1.
