| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
977 pcs
|
977 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

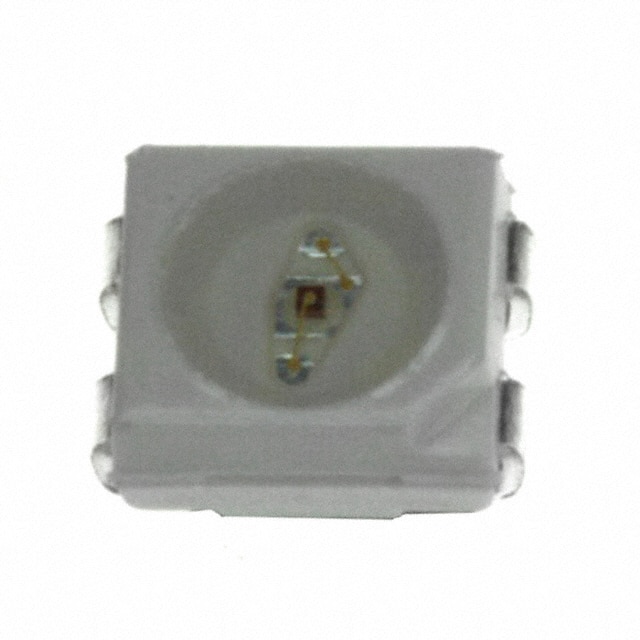

This Broadcom Limited ASMC-PHB9-TW005 is a discrete LED designed for indication purposes. It features a red color with a clear, colorless lens and a round, flat-top style. The LED is housed in a 4-PLCC package suitable for surface mounting.
Key electrical characteristics include an operating voltage of 2.8V and a maximum current of 50mA. It emits light with a wavelength of 623nm and achieves a luminous intensity of 1463mcd. The viewing angle is 150 degrees. The dimensions of the component are 3.20mm in length and 2.80mm in width, with a maximum height of 2.10mm.
The LED is specified with a Moisture Sensitivity Level (MSL) of 1, indicating unlimited usability under standard conditions. It is also noted as RoHS3 compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 2.8V.
The LED is supplied in a 4-PLCC package.
The luminous intensity is 1463mcd.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
