| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 1st Connector | |
| 1st Connector Mounting Feature | |
| 1st Connector Mounting Type | |
| 1st Contact Gender | |
| 2nd Connector | |
| 2nd Connector Mounting Type | |
| 2nd Contact Gender | |
| Cable Impedance | |
| Cable Type | |
| Color | |
| Features | |
| Frequency | |
| Length | |
| Style |

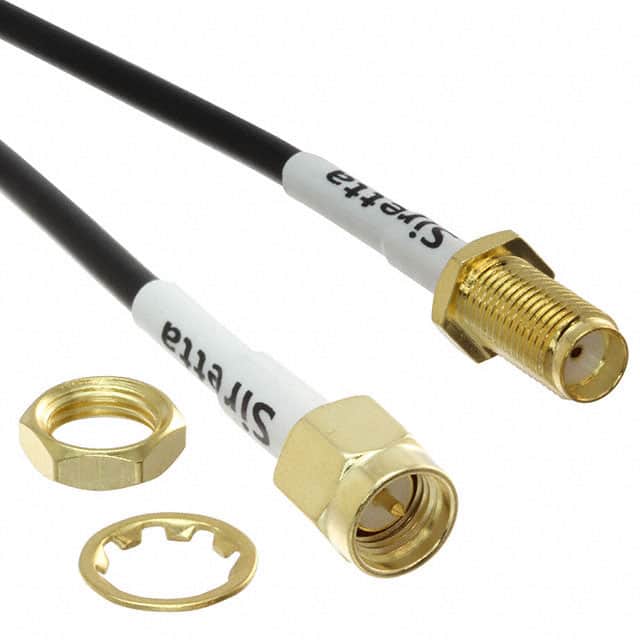

The Siretta Ltd ASMA020X174S11 is a 200 mm RF coaxial cable assembly with an SMA jack (female) on one end and an SMA plug (male) on the other. The cable is RG-174 type with a nominal 50 Ω impedance and a black outer jacket.
The assembly is rated for operation up to 6 GHz and is shielded to reduce electromagnetic interference. The 50 Ω impedance provides controlled signal transmission for RF circuits and systems.
The first connector is an SMA jack with a bulkhead front-side nut mounting feature, designed for panel installation. The second connector is an SMA plug configured for free hanging (in-line) use. The 200.00 mm (7.874 in) cable length makes this assembly suitable for short, compact RF interconnects between modules, antennas, or test equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.26 | $13.26 |
| 10+ | $11.27 | $11.27 |
| 30+ | $10.43 | $10.43 |
| 50+ | $10.06 | $10.06 |
| 100+ | $9.58 | $9.58 |
| 250+ | $8.98 | $8.98 |
| 500+ | $8.96 | $8.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The part is listed as RoHS3 Compliant in the source database, but this status is unverified. Confirm with Siretta Ltd before order if compliance documentation is required.
The cable has a nominal 50 Ω impedance.
The assembly is rated up to 6 GHz.
One end is an SMA jack (female) with bulkhead front-side nut panel mount; the other end is an SMA plug (male) free hanging (in-line).
It uses RG-174 cable with a length of 200.00 mm (7.874 in) and a black jacket.
Yes, the features field indicates the assembly is shielded.
