| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Input Frequency | |
| Input Voltage | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Temperature Coefficient | |
| Type | |
| Voltage |

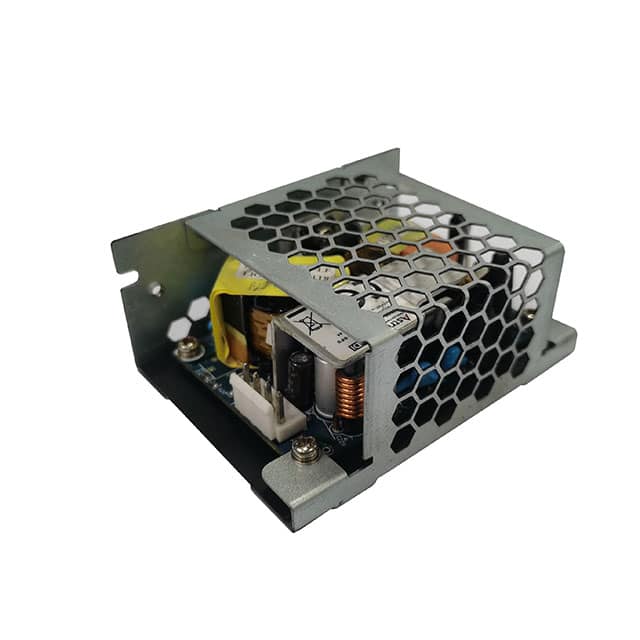

The Astrodyne TDI ASM65-075-BEH-0F0 is a versatile 65W AC/DC converter designed for both medical and industrial applications. It operates across a wide input voltage range of 80-264 VAC at 50/60 Hz, providing a stable DC output.
Key electrical specifications include a maximum output power of 65W, with a single output. The converter boasts an efficiency of 88% and meets DoE Efficiency Level VI standards. It offers robust protection features such as over-voltage, overload, and short-circuit protection with auto-recovery.
Designed for reliability, it operates within a temperature range of -40°C to +80°C. The unit is housed in an enclosed package, measuring 86.5mm x 63.0mm x 35.0mm. Safety approvals include IEC 60601-1 and IEC 62368-1, making it suitable for demanding environments.
This converter is compliant with RoHS3 standards and has an MSL rating of 1.
80-264 VAC.
-30 to +50°C at full load, -40 to +80°C overall.
Enclosed.
7.5V.
88% typical.
4000 VAC input to output, 2 MOPP.
Over voltage, overload, and short circuit protection with auto recovery.
