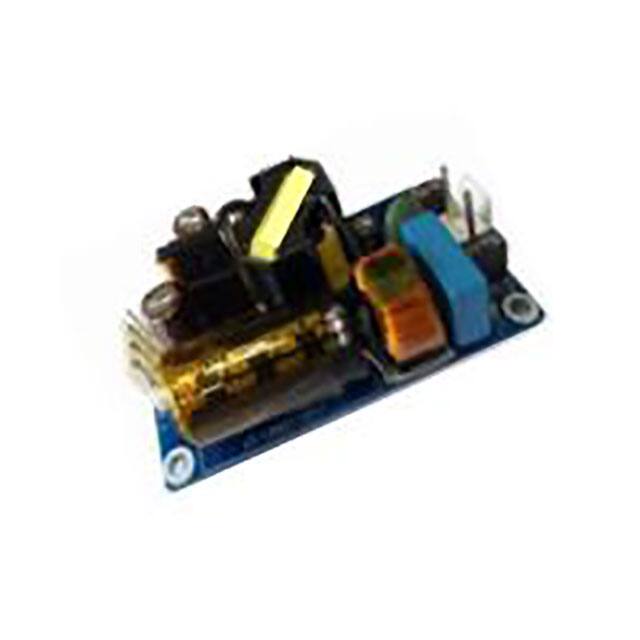

ASM30-033-BNH-0F0 The Astrodyne TDI ASM30-033-BNH-0F0 is a 30W AC/DC converter with a 3.3V single output, designed for open frame applications. It features universal AC input and high efficiency.
Mfr Part #:

ASM30-033-BNH-0F0

Mfr Name: Astrodyne TDI
Astrodyne TDI
The Astrodyne TDI ASM30-033-BNH-0F0 is a 30W AC/DC converter with a 3.3V single output, designed for open frame applications. It features universal AC input and high efficiency.
Stock on Request

ASM30-033-BNH-0F0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Industrial Grade
Input Frequency
Input Voltage
Medical Grade
Mounting Type
Number of Outputs
Operating Temperature
Overload Protection
Power (Watts)
Standard Number
Type
Voltage

ASM30-033-BNH-0F0 Description

Short technical summary and product information.

The Astrodyne TDI ASM30 series, including the ASM30-033-BNH-0F0 model, offers a 30-watt AC/DC conversion solution suitable for both medical and industrial applications. This open frame power supply operates with a universal AC input range of 80 to 264 VAC at 50/60Hz, providing a stable 3.3VDC regulated output.



Key electrical specifications include a maximum output current of 6.1A, an efficiency rating of 87%, and comprehensive protections such as over-voltage, overload, and short circuit. The unit is designed for free air convection cooling and operates across a wide temperature range from -40°C to 80°C.



Compliance with critical standards is a hallmark of the ASM30 series. It holds safety approvals including IEC 60601-1, IEC 62368-1, and cTUVus, making it suitable for medical applications. EMC compliance includes IEC 60601-1-2 Class B and EN 55032 Class B standards. The power supply also meets DoE Efficiency Level VI requirements and is RoHS-compliant.



With its compact dimensions of 76.2mm x 40.6mm x 21.7mm and chassis mount type, the ASM30-033-BNH-0F0 is designed for easy integration into various systems requiring reliable power conversion.

ASM30-033-BNH-0F0 Quick Information

Product Type: AC DC Converter
Series: ASM30
Canonical Name: Astrodyne TDI ASM30 Series 30W Single Output AC/DC Converter
Subcategory: AC DC Converter

ASM30-033-BNH-0F0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ASM30-033-BNH-0F0 Features

  • 30W output power with 3.3V single output.
  • Universal 80-264VAC input voltage range.
  • 87% efficiency and DoE Level VI compliance.
  • Open frame, chassis mount package.
  • Medical and industrial application suitability.

ASM30-033-BNH-0F0 Applications

  • Designed for medical equipment.
  • Suitable for industrial control systems.
  • Used in commercial ITE devices.
  • Compact open frame integration.

ASM30-033-BNH-0F0 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the ASM30-033-BNH-0F0?

The output voltage is 3.3VDC.

What is the maximum output power for this AC/DC converter?

The maximum output power is 30W.

What is the input voltage range for the ASM30-033-BNH-0F0?

The input voltage range is 80-264 VAC.

What is the operating temperature range?

The operating temperature range is -40°C to 80°C.

What safety standards does this power supply comply with?

It complies with IEC 60601-1, IEC 62368-1, cTUVus, CSA C22.2, TUV, and CB Scheme.

What are the EMC compliance standards?

It complies with IEC 60601-1-2 4th Ed, Class B and EN 55032 (CISPR32), Class B.

Is this power supply RoHS compliant?

Yes, it is RoHS3 Compliant.
