| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26 pcs
|
26 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging | |
| Base Resonator | |
| Current | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Output High Level | |
| Output Load | |
| Output Low Level | |
| Output Type | |
| Phase Jitter | |
| Rise & Fall Time | |
| Standard Package Qty | |
| Start-up Time | |
| Storage Temperature | |
| Supply Current | |
| Supply Voltage | |
| Supply Voltage Tolerance | |
| Symmetry (Duty Cycle) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

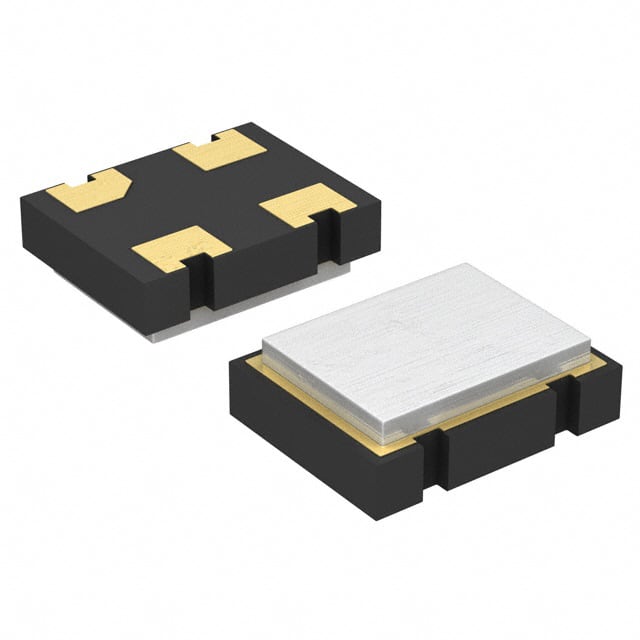

The Abracon LLC ASFLK-32.768KHZ-LJT is a ceramic SMD crystal oscillator from the ASFLK series, offering a precise 32.768 kHz output frequency for timing applications.
This oscillator operates with a 3.3V supply voltage and features a TTL output type with enable/disable function via a tri-state control. It delivers tight frequency stability of ±20ppm over its full operating temperature range of -40°C to +85°C.
The device is housed in a compact 4-SMD, No Lead ceramic package measuring 5.00mm x 3.20mm x 1.30mm, suitable for high-density surface mount assembly. It supports IR reflow soldering and is RoHS3 compliant.
Key electrical characteristics include 0.5mA typical supply current, 250 ns typical rise/fall time, a 40/60% duty cycle, and low phase jitter of 1 ps RMS. Aging is specified at ±3 ppm/year. The part is supplied in tape and reel packaging with 1000 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.45 | $2.45 |
| 10+ | $2.12 | $2.12 |
| 25+ | $1.95 | $1.95 |
| 100+ | $1.84 | $1.84 |
| 250+ | $1.57 | $1.57 |
| 500+ | $1.53 | $1.53 |
| 1,000+ | $1.47 | $1.47 |
| 2,000+ | $1.37 | $1.37 |
| 5,000+ | $1.30 | $1.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to +85°C.
The supply voltage is 3.3V with a tolerance of ±10%.
Yes, it is RoHS3 compliant as verified from the datasheet.
The device is in a 4-SMD, No Lead ceramic package measuring 5.00mm x 3.20mm x 1.30mm. Mounting type is Surface Mount.
The typical supply current is 0.5mA, with a maximum of 1.0mA at 3.3V.
The frequency stability is ±20ppm.
Yes, it has an enable/disable function. Logic '1' or open enables oscillation; logic '0' forces the output to Hi-Z.
