| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging | |
| Base Resonator | |
| Current | |
| Disable Current | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Length | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Output Load | |
| Phase Jitter, RMS | |
| Rise and Fall Time | |
| Standard Package Quantity | |
| Start-up Time | |
| Symmetry | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

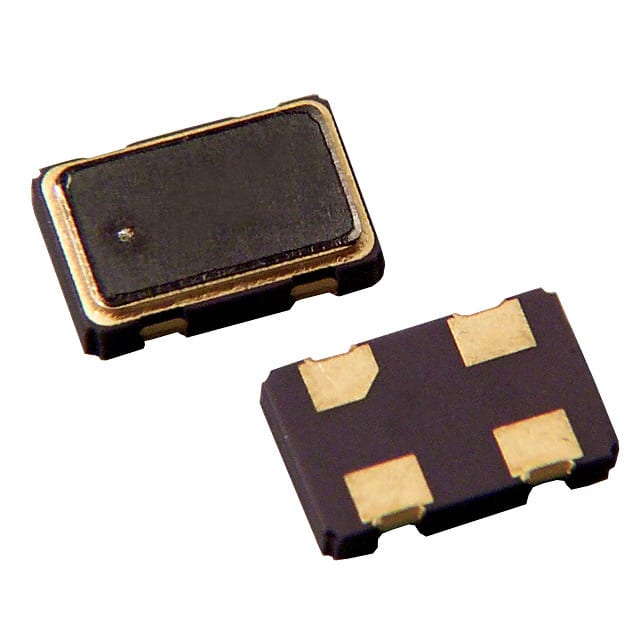

The Abracon ASFL1-33.333MHZ-EC-T is a surface-mount crystal clock oscillator (XO) operating at 33.333 MHz. It features HCMOS and TTL compatible outputs, a 3.3V supply voltage (2.97V to 3.63V range), and a frequency stability of ±50 ppm over the -20°C to +70°C operating temperature range.
This oscillator is housed in a compact 5.0 x 3.2 x 1.3 mm 4-SMD, no lead package, suitable for high-density SMT assembly. It includes a tri-state enable/disable function, typical symmetry of 50%, and typical rise/fall times of 5 ns. The device is RoHS3 compliant and rated for a first-year aging of ±5 ppm.
Typical applications include CCD clocks for VTR cameras, equipment connected to PCs or PC cards, thin equipment, wireless communication devices, PDAs, and laptop computers. The seam-sealed package ensures high reliability performance and is suitable for RoHS compliant reflow processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.23 | $1.23 |
| 10+ | $0.97 | $0.97 |
| 100+ | $0.93 | $0.93 |
| 250+ | $0.88 | $0.88 |
| 500+ | $0.74 | $0.74 |
| 1,000+ | $0.68 | $0.68 |
| 5,000+ | $0.68 | $0.68 |
| 10,000+ | $0.66 | $0.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage is 3.3V, with a minimum of 2.97V and maximum of 3.63V.
It comes in a 4-SMD, No Lead surface mount package measuring 5.0 x 3.2 x 1.3 mm.
The operating temperature range is -20°C to +70°C.
Yes, it is RoHS3 compliant as stated in the datasheet.
It supports both HCMOS and TTL output logic.
The frequency stability is ±50 ppm.
Yes, it has a tri-state enable/disable function.
