| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging | |
| Automotive Grade | |
| Base Resonator | |
| Current | |
| Disable Current (@ STD Tri-state) | |
| Disable Current (Typical @ PD option (Power Down) | |
| Disable Time | |
| Duty Cycle | |
| Enable Time (STD Tri-state) | |
| Fall Time | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Industrial Grade | |
| Integrated Phase Jitter (200kHz~20MHz @ 125MHz) | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Output Logic Level (Maximum @ VOL) | |
| Output Logic Level (Minimum @ VOH) | |
| Package / Case | |
| Period Jitter RMS | |
| Rise Time | |
| Startup Time | |
| Storage Temperature | |
| Supply Current (Max) | |
| Supply Voltage | |
| Tape & Reel | |
| Tri-state Function | |
| Type | |
| Voltage | |
| Width |

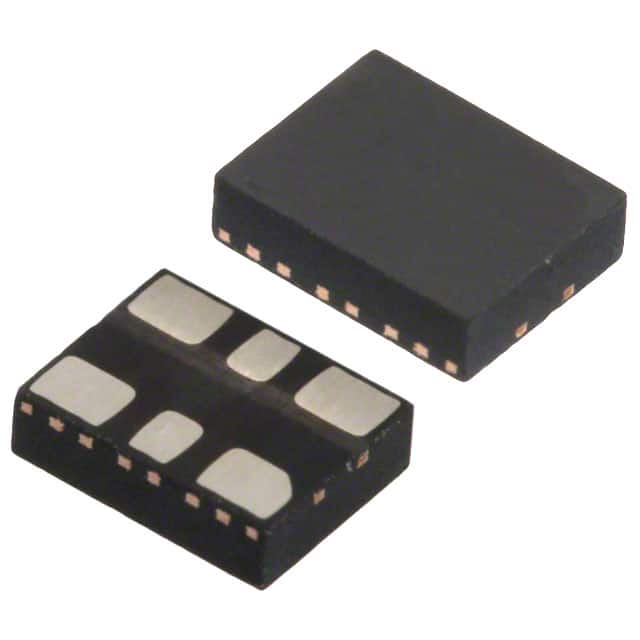

The ASEMPC-50.000MHZ-LR-T is a MEMS-based clock oscillator from Abracon, part of the ASEMP series. It delivers a precise 50 MHz CMOS output with excellent stability and low jitter, making it suitable for high-speed digital applications.
Key electrical specifications include a supply voltage range of 2.25V to 3.6V, typical supply current of 35 mA, and frequency stability of ±25 ppm over the operating temperature range of -40°C to +85°C. The oscillator features an enable/disable function with tri-state output, allowing for power management. Output rise and fall times are typically 1-2 ns with a duty cycle of 45-55%.
The device is housed in a compact 6-SMD, no lead package measuring 3.2 mm x 2.5 mm x 0.90 mm, suitable for surface mount assembly. It is RoHS3 compliant and has an MSL of Level 1.
Typical applications include Ethernet, PCI Express, storage area networks, passive optical networks, and other high-speed communication systems requiring reliable clock generation.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.45 | $2.45 |
| 10+ | $2.11 | $2.11 |
| 25+ | $2.00 | $2.00 |
| 100+ | $1.82 | $1.82 |
| 250+ | $1.67 | $1.67 |
| 500+ | $1.64 | $1.64 |
| 1,000+ | $1.60 | $1.60 |
| 5,000+ | $1.41 | $1.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.25V to 3.6V.
-40°C to +85°C.
Yes, RoHS3 compliant.
6-SMD, no lead, measuring 3.2mm x 2.5mm.
±25 ppm.
CMOS.
Yes, with tri-state function. Enable time is 20 ns typical.
