| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
37 pcs
|
37 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging | |
| Base Resonator | |
| Current | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output | |
| Output Voltage High | |
| Output Voltage Low | |
| Package / Case | |
| Rise & Fall Time | |
| Standard Package Quantity | |
| Start-up Time | |
| Storage Temperature Range | |
| Supply Current (Typical/Maximum @ Vdd = 1.8 V) | |
| Supply Current (Typical/Maximum @ Vdd = 2.5 V) | |
| Supply Current (Typical/Maximum @ Vdd=3.3 V) | |
| Supply Voltage | |
| Symmetry | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

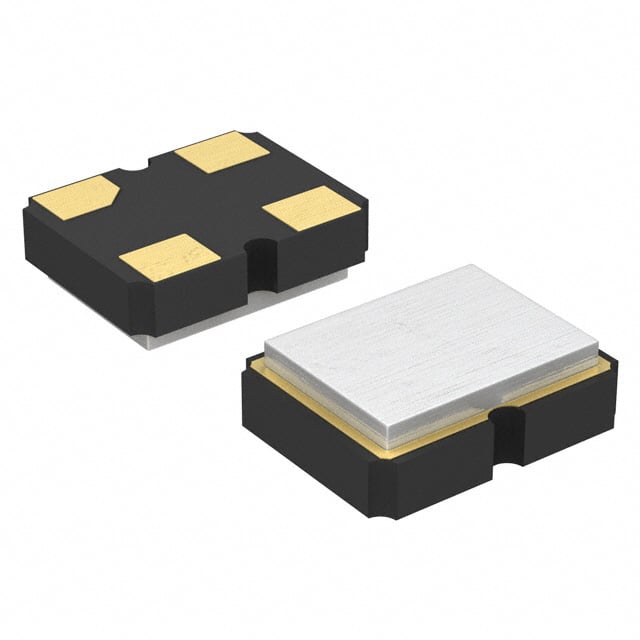

The Abracon ASEK-32.768KHZ-L-R-T is a surface-mount crystal oscillator (XO) that provides a precise 32.768 kHz output with CMOS logic levels. It is designed for low-power applications requiring a stable clock reference.
Key electrical specifications include a nominal supply voltage of 3.3V ±10%, typical supply current of 1.7 mA (3.5 mA max), and frequency stability of ±25 ppm over the full operating temperature range of -40°C to +85°C. The output is CMOS with 40/60% symmetry and typical rise/fall times of 40 ns. The device features an enable/disable (tri-state) function: logic high or open enables oscillation, logic low places the output in high impedance.
The oscillator is housed in a compact 4-SMD, No Lead ceramic package measuring 3.20 mm x 2.50 mm x 1.20 mm, suitable for space-constrained designs. It is RoHS3 compliant and lead-free, and is supplied in tape and reel packaging with 1,000 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.93 | $1.93 |
| 10+ | $1.67 | $1.67 |
| 25+ | $1.58 | $1.58 |
| 100+ | $1.44 | $1.44 |
| 250+ | $1.33 | $1.33 |
| 500+ | $1.30 | $1.30 |
| 1,000+ | $1.24 | $1.24 |
| 2,000+ | $1.16 | $1.16 |
| 5,000+ | $1.10 | $1.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to +85°C.
The nominal supply voltage is 3.3V with ±10% tolerance.
Yes, it is RoHS3 compliant and lead-free as per the datasheet.
The package is 4-SMD, No Lead, measuring 3.20 mm x 2.50 mm x 1.20 mm, surface mount.
The frequency stability is ±25 ppm maximum.
Yes, it has an enable/disable (tri-state) function. Logic high or open enables oscillation; logic low disables the output to high impedance.
The typical supply current is 1.7 mA, with a maximum of 3.5 mA at 3.3V.
