| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Length | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Output Logic | |
| Package / Case | |
| Standard Package Qty | |
| Supply Current | |
| Supply Voltage | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

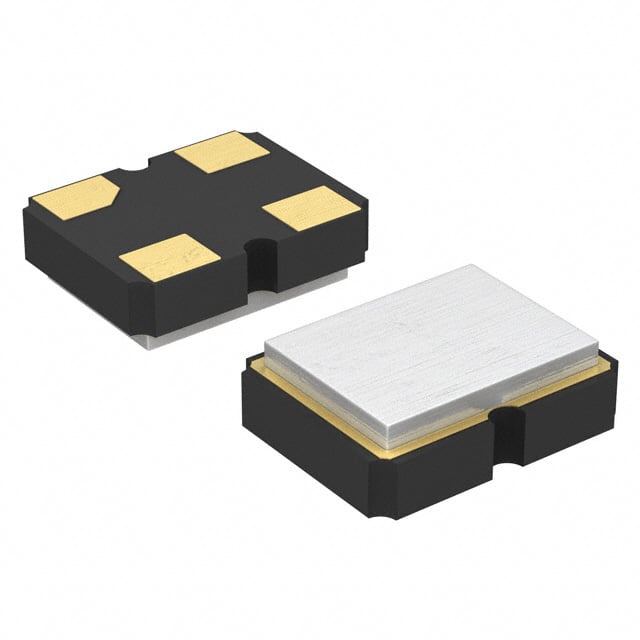

The ASE2-20.000MHZ-ET is a 20 MHz crystal oscillator from Abracon's ASE2 series. It features a CMOS output and operates from a 2.5V supply voltage with a typical current consumption of 8mA. The overall frequency stability is ±100ppm over the operating temperature range of -20°C to +70°C.
This oscillator includes a standby (power down) function for power savings. It is housed in a compact 4-SMD, no lead package measuring 3.2mm x 2.5mm x 1.2mm, suitable for surface mount assembly. The package is seam sealed for high reliability and is RoHS3 compliant.
Typical applications include clock generation for VTR cameras, timing for PC card interfaces, and wireless communication equipment. The device is MSL-1 rated and compatible with RoHS reflow processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.05 | $1.05 |
| 10+ | $0.90 | $0.90 |
| 25+ | $0.86 | $0.86 |
| 100+ | $0.78 | $0.78 |
| 250+ | $0.72 | $0.72 |
| 500+ | $0.70 | $0.70 |
| 1,000+ | $0.67 | $0.67 |
| 2,000+ | $0.63 | $0.63 |
| 5,000+ | $0.60 | $0.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.5V nominal, with a range of 2.375V to 2.625V.
4-SMD, No Lead; 3.2mm x 2.5mm x 1.2mm.
-20°C to 70°C.
Yes, RoHS3 compliant per datasheet.
±100ppm overall.
CMOS.
Yes, standby (power down) function.
