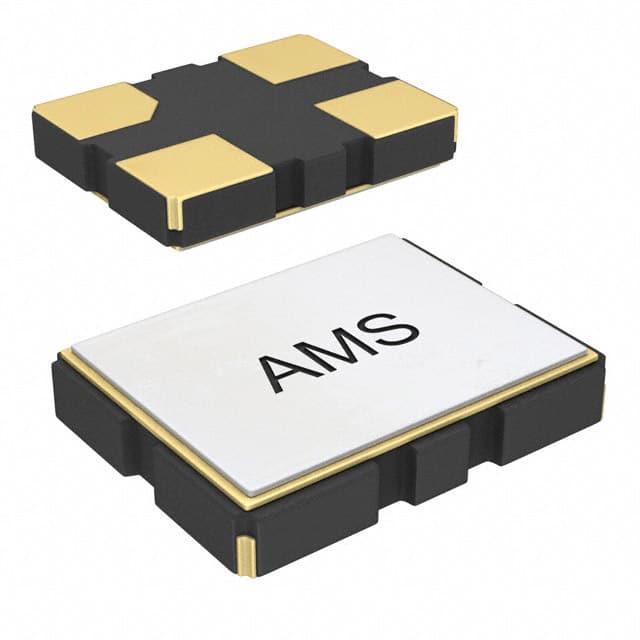

The Abracon LLC ASE-32.000MHZ-E-T is a 32 MHz CMOS XO (Standard) crystal oscillator from the ASE series. It is designed for surface mount applications in a compact 3.2mm x 2.5mm x 1.2mm 4-SMD, No Lead package.
Electrically, this oscillator operates with a 3.3V nominal supply voltage (range 3.135V to 3.465V) and draws a typical supply current of 4.4mA (maximum 13mA) in the 20.1~40 MHz frequency range. It features a CMOS output with enable/disable function, ±100ppm maximum frequency stability, and a duty cycle symmetry of 45/50/55%.
The device is rated for an operating temperature range of -20°C to +70°C. It provides typical rise/fall times of 2.4ns (4.0ns max), typical startup time of 1ms (2ms max), and typical RMS jitter of 3.2ps (5ps max). First-year aging is ±3ppm max at 25°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
| 10+ | $1.04 | $1.04 |
| 25+ | $0.99 | $0.99 |
| 50+ | $0.95 | $0.95 |
| 100+ | $0.91 | $0.91 |
| 250+ | $0.86 | $0.86 |
| 500+ | $0.82 | $0.82 |
| 1,000+ | $0.79 | $0.79 |
| 2,000+ | $0.76 | $0.76 |
| 3,000+ | $0.74 | $0.74 |
| 5,000+ | $0.71 | $0.71 |
| 7,000+ | $0.70 | $0.70 |
| 10,000+ | $0.69 | $0.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 3.3V nominal, with a range of 3.135V to 3.465V.
The operating temperature range is -20°C to +70°C.
Yes, the datasheet indicates it is RoHS/RoHS II compliant and MSL Level 1.
It uses a 4-SMD, No Lead surface mount package measuring 3.20mm x 2.50mm x 1.20mm.
The maximum frequency stability is ±100 ppm.
Typical supply current is 4.4mA with a maximum of 13mA (for 20.1~40 MHz).
