| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,910 pcs
|
3910 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Applications | |
| Features | |
| Lead Spacing | |
| Maximum Pressure | |
| Mounting Type | |
| Operating Pressure | |
| Operating Temperature | |
| Output | |
| Output Type | |
| Port Size | |
| Port Style | |
| Pressure Type | |
| Tape & Reel | |
| Termination Style | |
| Voltage |

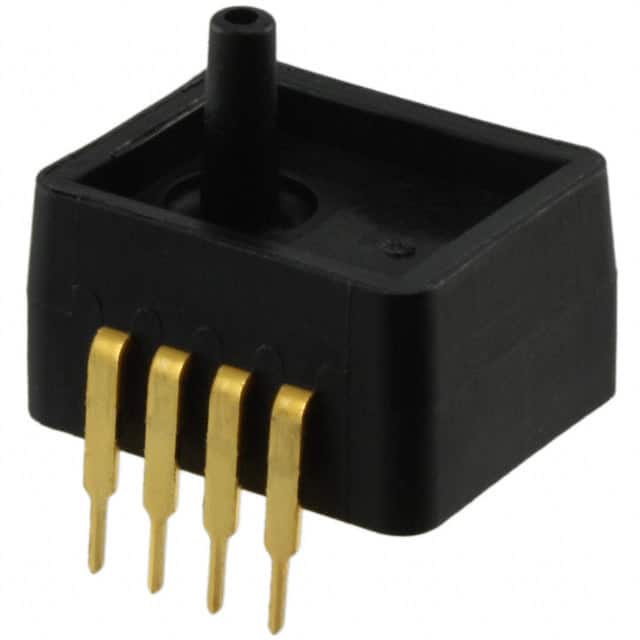

This Honeywell ASDXAVX015PGAA5 is a pressure sensor designed for board mounting applications. It features a vented gauge pressure type with an operating pressure of 15PSI (103.42kPa) and a maximum pressure rating of 30PSI (206.84kPa).
The sensor provides an analog voltage output ranging from 0.5V to 4.5V, with an accuracy of ±2%. It operates within a supply voltage range of 4.75V to 5.25V and features temperature compensation for stable performance.
The ASDXAVX015PGAA5 has an operating temperature range of -20°C to 105°C. It is packaged in an 8-DIP module and designed for through-hole mounting with PC pin termination.
Environmental compliance includes RoHS3 compliance, MSL 1 (Unlimited), and REACH unaffected status.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating pressure range is 15PSI.
It provides an analog voltage output ranging from 0.5V to 4.5V.
The sensor operates between -20°C and 105°C.
The sensor requires a supply voltage between 4.75V and 5.25V.
The component is supplied in an 8-DIP Module package.
