| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
460 pcs
|
460 pcs | On Request | 1 | On Request | On Request | 22+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Applications | |
| Features | |
| Maximum Pressure | |
| Mounting Type | |
| Operating Pressure | |
| Operating Temperature | |
| Output | |
| Output Type | |
| Port Size | |
| Port Style | |
| Pressure Type | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage |

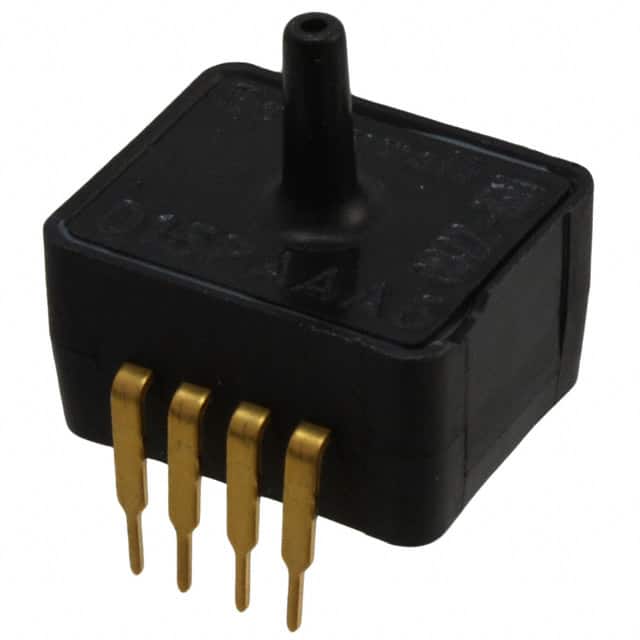

This Honeywell ASDXACX015PAAA5 is an absolute pressure sensor designed for board mounting applications. It features a 15PSI (103.42kPa) operating pressure range and a maximum pressure rating of 30PSI (206.84kPa).
The sensor provides an analog voltage output ranging from 0.5V to 4.5V, with an accuracy of ±2%. It operates with a supply voltage between 4.75V and 5.25V and is temperature compensated.
The ASDXACX015PAAA5 is housed in an 8-DIP module package and utilizes a through-hole mounting type with PC pin termination. The port size is 0.09" (2.31mm) tube with a barbless port style.
This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. It is suitable for applications requiring precise pressure monitoring within its specified operating conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating pressure range is 15PSI.
The output voltage is 0.5V to 4.5V.
The operating voltage is 4.75V to 5.25V.
The operating temperature range is -20°C to 105°C.
The sensor is mounted using a through-hole method.
The sensor comes in an 8-DIP Module package.
