| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | 2026-05-08 04:16:09 |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Applications | |
| Features | |
| Lead Spacing | |
| Maximum Pressure | |
| Mounting Type | |
| Operating Pressure | |
| Operating Temperature | |
| Output | |
| Output Type | |
| Port Size | |
| Port Style | |
| Pressure Type | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage |

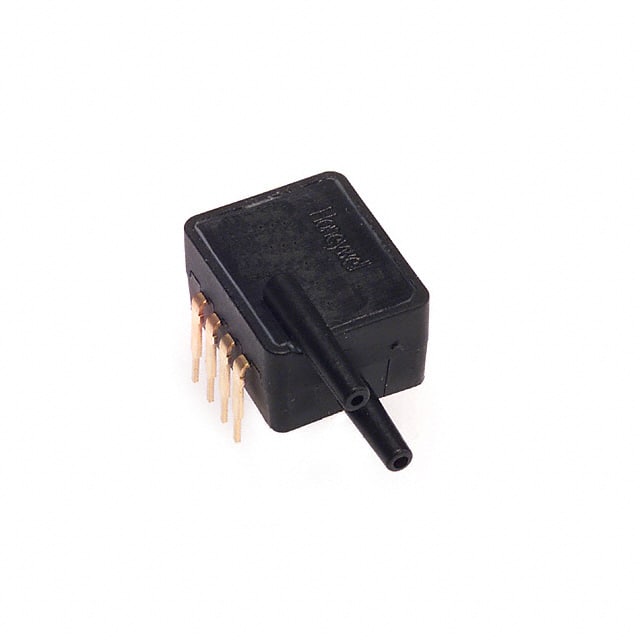

The Honeywell ASDX100D44R is a differential pressure sensor designed for board mounting applications. It operates within a pressure range of 100 PSI (689.48kPa), with a maximum pressure rating of 150 PSI (1034.21kPa).
This sensor provides an amplified analog voltage output, ranging from 0.5V to 4.5V, and is temperature compensated for enhanced accuracy. It features a port size of 0.09" (2.29mm) tube with a barbless port style and a dual port configuration. The operating temperature range is -20°C to 105°C.
Designed with a through-hole mounting type and PC pin termination, the ASDX100D44R is suitable for integration into various electronic circuits. Its features include amplified output and temperature compensation, making it a reliable choice for pressure sensing applications requiring precise measurements.
The sensor is housed in an 8-DIP module package. It is specified as RoHS3 Compliant, with an MSL rating of 1 Unlimited, and REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating pressure range is 100 PSI (689.48kPa).
It provides an analog voltage output ranging from 0.5V to 4.5V.
The operating temperature range is -20°C to 105°C.
The operating voltage is between 4.75V and 5.25V.
It is a through-hole mounted component.
The package type is an 8-DIP module.
