| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-04-21 02:15:51 | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging | |
| Base Resonator | |
| Current | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Length | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Output Load | |
| Package / Case | |
| Standard Package Quantity | |
| Storage Temperature | |
| Supply Current (Typical/Maximum @ Vdd=3.3 V) | |
| Supply Voltage (Minimum/Nominal/Maximum @ Standard) | |
| Symmetry | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Width |

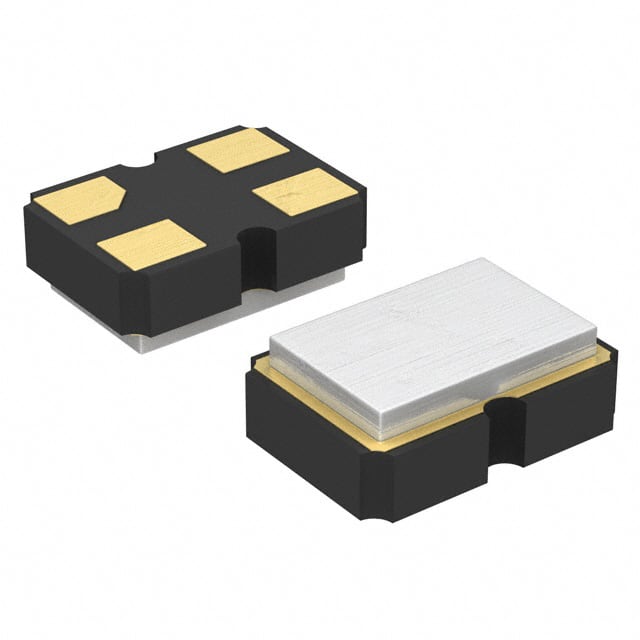

The Abracon ASDK-32.768KHZ-LRT is a surface-mount crystal oscillator (XO) from the ASDK series, designed for low-power timing applications. It operates at a nominal frequency of 32.768 kHz with CMOS output logic, making it suitable for real-time clock references and other low-frequency timing circuits.
Key specifications include a supply voltage of 3.3V (2.97V to 3.66V range), typical supply current of 2.2 mA (max 3.5 mA), and frequency stability of ±25 ppm over the operating temperature range of -40°C to +85°C. The oscillator features an enable/disable function (tri-state) for power management.
The device is housed in a compact 2.5mm x 2.0mm x 0.95mm 4-SMD ceramic package with no leads, suitable for automated assembly. It supports a CMOS load of 15 pF and has a symmetry of 40/50/60% at half Vdd. Aging is ±3.0 ppm in the first year at 25°C.
This oscillator is RoHS3 compliant and REACH unaffected, with an MSL level of 1 (unlimited). It is typically supplied in tape and reel packaging with 1000 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.56 | $1.56 |
| 10+ | $1.36 | $1.36 |
| 25+ | $1.26 | $1.26 |
| 100+ | $1.17 | $1.17 |
| 250+ | $1.03 | $1.03 |
| 500+ | $1.00 | $1.00 |
| 1,000+ | $0.93 | $0.93 |
| 2,000+ | $0.89 | $0.89 |
| 5,000+ | $0.81 | $0.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Nominal 3.3V, with a range of 2.97V to 3.66V (3.3V±10%).
4-SMD, No Lead, surface mount package measuring 2.5mm x 2.0mm x 0.95mm.
-40°C to +85°C.
Yes, it is RoHS3 compliant (unverified).
32.768 kHz.
±25 ppm.
CMOS.
