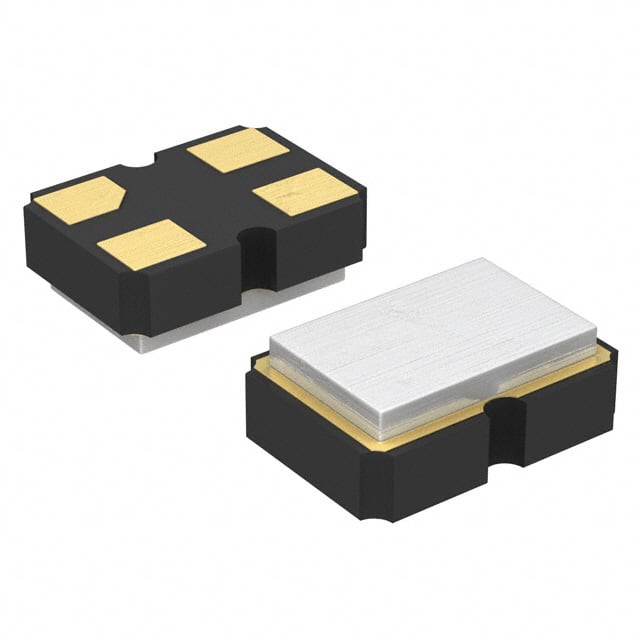

The Abracon ASD3-25.000MHZ-LR-T is a surface-mount crystal oscillator (XO) from the ASD series. It operates at a nominal frequency of 25 MHz with HCMOS output logic. The oscillator is designed for a supply voltage of 1.8V (ASD3 variant) with a tolerance of ±0.09V (1.71V to 1.89V). Frequency stability is ±25 ppm over the operating temperature range of -40°C to +85°C. The device features a tri-state enable/disable function for power management.
This oscillator consumes a maximum supply current of 4 mA at 25 MHz. Output symmetry is 40% to 60% at half Vdd, with rise/fall times of 8 ns maximum. Start-up time is 10 ms maximum. The output is capable of driving a 15 pF load.
Packaged in a 4-SMD, no-lead ceramic package measuring 2.5mm x 2.0mm with a low profile of 1.0mm, this oscillator is suitable for space-constrained applications. It is RoHS compliant and hermetically sealed, making it suitable for reflow soldering processes.
Typical applications include equipment connected to PC or PC cards, thin equipment, and CCD clock for VTR cameras, as indicated in the datasheet. The device is also suitable for general-purpose timing applications requiring a stable 25 MHz clock source.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.10 | $1.10 |
| 10+ | $0.95 | $0.95 |
| 25+ | $0.91 | $0.91 |
| 100+ | $0.82 | $0.82 |
| 250+ | $0.74 | $0.74 |
| 500+ | $0.72 | $0.72 |
| 1,000+ | $0.71 | $0.71 |
| 2,000+ | $0.66 | $0.66 |
| 5,000+ | $0.63 | $0.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal supply voltage is 1.8V, with a minimum of 1.71V and maximum of 1.89V (ASD3 variant).
It comes in a 4-SMD, No Lead package with dimensions 2.5mm x 2.0mm and a height of 1.0mm.
The operating temperature range is -40°C to +85°C.
Yes, it is RoHS3 compliant as verified by the datasheet.
The frequency stability is ±25 ppm.
The output logic is HCMOS.
Yes, it features a tri-state enable/disable function.
