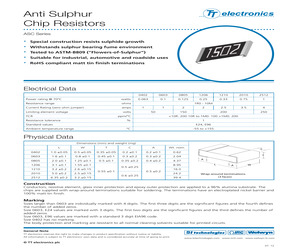

ASC0603-47KFT5 The TT Electronics ASC0603-47KFT5 is a surface mount thick film resistor from the ASC Series. It offers a resistance of 47 kOhms with a tolerance of 1% and a power rating of 0.1W.
Mfr Part #:

ASC0603-47KFT5

Available from 1 distributors
Mfr Name: TT Electronics/BI
TT Electronics/BI
The TT Electronics ASC0603-47KFT5 is a surface mount thick film resistor from the ASC Series. It offers a resistance of 47 kOhms with a tolerance of 1% and a power rating of 0.1W.
✓ Total Stock: 10,000 pcs
$ Price Range: $0.00

ASC0603-47KFT5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ASC0603-47KFT5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Feature
Operating Temperature
Power Rating
Resistance
Resistance Tolerance
Temperature Coefficient
Voltage Rating
View Similar Products (0)

ASC0603-47KFT5 Description

Short technical summary and product information.

The TT Electronics ASC0603-47KFT5 is a surface mount thick film resistor belonging to the ASC Series. This component features a resistance value of 47 kOhms with a tight tolerance of ± 1%. It is rated for a power dissipation of 0.1W and a working voltage of 50V.



The resistor has a temperature coefficient of ± 100 ppm/°C and an operating temperature range up to 155 °C. The case style is 0603 (1608 Metric), designed for surface mounting with wraparound terminations. The terminal finish is Matte Tin over Nickel.



This component is suitable for various electronic applications requiring reliable surface mount resistors. Its construction and specifications make it a versatile choice for circuit design and manufacturing.

ASC0603-47KFT5 Quick Information

Product Type: Chip Resistor - Surface Mount
Series: ASC Series
Canonical Name: TT Electronics/BI ASC0603-47KFT5 Surface Mount Thick Film Resistor
Subcategory: Chip Resistor - Surface Mount

ASC0603-47KFT5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

ASC0603-47KFT5 Estimated Pricing

Qty Low High
1+ $0.00 $0.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

ASC0603-47KFT5 Features

  • Surface mount thick film resistor.
  • 47 kOhm resistance with 1% tolerance.
  • 0.1W power rating at 50V.
  • Temperature coefficient of ± 100 ppm/°C.
  • 0603 package size for compact designs.

ASC0603-47KFT5 Applications

  • Used in general purpose circuit applications.
  • Suitable for automated PCB assembly.
  • Ideal for signal conditioning circuits.
  • Component for power management systems.

ASC0603-47KFT5 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the ASC0603-47KFT5?

The resistance is 47 kOhm.

What is the tolerance of this resistor?

The tolerance is ±1%.

What is the power rating of the ASC0603-47KFT5?

The power rating is 0.1W at 70°C.

What is the temperature coefficient?

The temperature coefficient is ±100 ppm/°C.

What is the package size?

The package is 0603 (1608 metric).

What is the maximum operating temperature?

The maximum operating temperature is 155°C.

What is the working voltage?

The working voltage is 50V.
