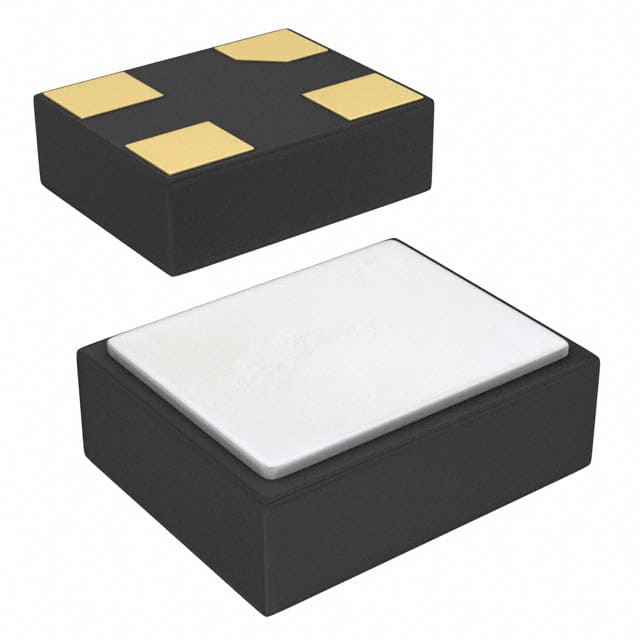

The Abracon ASA-38.400MHZ-L-T is a 38.4 MHz HCMOS surface-mount crystal clock oscillator from the ASA series. It provides a standard XO (crystal oscillator) output with a tri-state enable/disable function, making it suitable for power-sensitive designs.
Key electrical specifications include a nominal supply voltage of 3.3V with typical supply current of 4.0mA (maximum 10.0mA) driving a 15pF load. Overall frequency stability is ±50ppm, which includes initial tolerance and temperature effects. The device operates over a temperature range of -40°C to +85°C.
Packaged in a 4-SMD, no-lead ceramic package measuring 2.00mm x 1.60mm x 0.80mm, the oscillator is hermetically sealed and not moisture sensitive (MSL N/A). It is designed for high-density SMT assembly and is RoHS compliant.
Typical applications include CCD clock generation for VTR cameras, timing for computers and peripherals, portable electronics, and mobile communication devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
| 10+ | $2.23 | $2.23 |
| 25+ | $2.02 | $2.02 |
| 100+ | $1.93 | $1.93 |
| 250+ | $1.80 | $1.80 |
| 500+ | $1.75 | $1.75 |
| 1,000+ | $1.67 | $1.67 |
| 2,000+ | $1.56 | $1.56 |
| 5,000+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.3V nominal.
4-SMD, No Lead, 2.00mm x 1.60mm x 0.80mm.
-40°C to +85°C.
Yes, RoHS3 compliant.
±50ppm overall.
HCMOS.
Tri-state, active high enable/disable.
