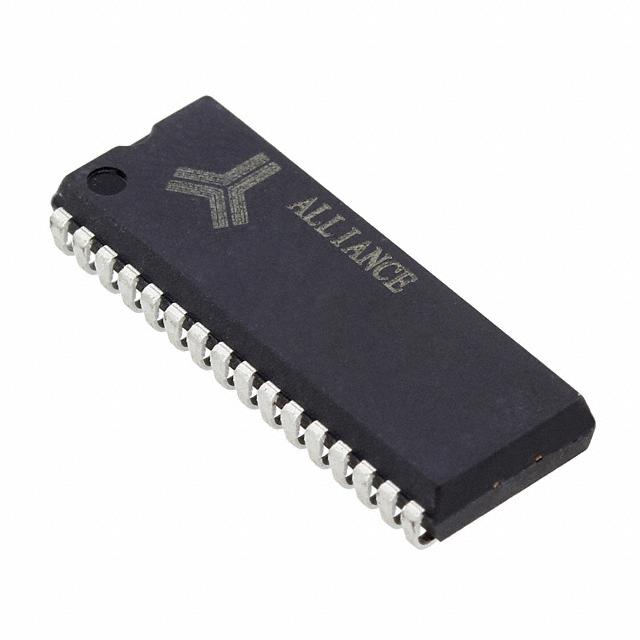

AS7C1024B-12TJCNTR The Alliance Memory AS7C1024B-12TJCNTR is a 1Mbit parallel CMOS SRAM with a 12ns address access time. It operates from a 4.5V to 5.5V supply.
Mfr Part #:

AS7C1024B-12TJCNTR

Available from 2 distributors
Mfr Name: Alliance
Alliance
The Alliance Memory AS7C1024B-12TJCNTR is a 1Mbit parallel CMOS SRAM with a 12ns address access time. It operates from a 4.5V to 5.5V supply.
✓ Total Stock: 3,001 pcs
$ Price Range: $1.28

AS7C1024B-12TJCNTR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Innova Technologies ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AS7C1024B-12TJCNTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
ESD Protection
Lead Spacing
Lead Style
Memory Organization
Memory Size
Mounting Type
Operating Temperature
Operating Voltage
Storage Temperature
Tape & Reel
Write Cycle Time
View Similar Products (0)

AS7C1024B-12TJCNTR Description

Short technical summary and product information.

The Alliance Memory AS7C1024B-12TJCNTR is a high-speed CMOS Static Random Access Memory (SRAM) device organized as 131,072 words by 8 bits, totaling 1Mbit of memory.



This SRAM features a fast address access time of 12 ns and an output enable access time of 7 ns, making it suitable for high-performance applications. It operates with a supply voltage ranging from 4.5V to 5.5V. The device consumes a maximum of 605 mW in active mode at 10 ns and 55 mW in CMOS standby mode.



Designed for simple interfacing, the AS7C1024B utilizes TTL/LVTTL-compatible, three-state I/O. It is available in a 32-pin SOJ package, suitable for surface mounting. The operating temperature range is 0°C to 70°C.



Key features include easy memory expansion capabilities with CE1 and CE2 inputs, and ESD protection exceeding 2000 volts. The device also has a latch-up current rating of at least 200 mA.

AS7C1024B-12TJCNTR Quick Information

Product Type: SRAM
Canonical Name: Alliance AS7C1024B-12TJCNTR 1Mbit 128K x 8 Parallel CMOS SRAM
Subcategory: Static RAM

AS7C1024B-12TJCNTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

AS7C1024B-12TJCNTR Estimated Pricing

Qty Low High
1+ $1.28 $1.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

AS7C1024B-12TJCNTR Features

  • 1Mbit parallel CMOS SRAM organization.
  • 12ns maximum address access time.
  • 4.5V to 5.5V operating voltage range.
  • 32-pin SOJ surface mount package.
  • ROHS3 Compliant status.

AS7C1024B-12TJCNTR Applications

  • High-speed data storage.
  • Memory expansion in embedded systems.
  • Fast read/write operations.
  • Low power standby applications.

AS7C1024B-12TJCNTR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the memory size of the AS7C1024B-12TJCNTR?

The AS7C1024B-12TJCNTR has a memory size of 1 Mbit, organized as 131,072 words x 8 bits.

What is the access time of the AS7C1024B-12TJCNTR?

The maximum address access time is 12 ns, and the maximum output enable access time is 7 ns.

What is the operating voltage range of the AS7C1024B-12TJCNTR?

The operating voltage range is 4.5V to 5.5V.

What is the operating temperature range of the AS7C1024B-12TJCNTR?

The operating temperature range is 0°C to 70°C.

What package is the AS7C1024B-12TJCNTR available in?

The AS7C1024B-12TJCNTR is available in a 32-SOJ (0.300", 7.62mm Width) surface mount package.

What is the power consumption of the AS7C1024B-12TJCNTR?

The maximum active power consumption is 605 mW at 10 ns cycle time, and the maximum standby power consumption is 55 mW in CMOS mode.
