| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
94 pcs
|
94 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Access Time | |
| Height | |
| Length | |
| Memory Type | |
| Mount | |
| Number of Pins | |
| Width |
The Alliance AS6C62256-55SIN is a 262,144-bit low power CMOS static random access memory organized as 32,768 words by 8 bits. It is fabricated using high-performance, high-reliability CMOS technology.
This SRAM offers an access time of 55ns and operates with a wide power supply range of 2.7V to 5.5V. It features low power consumption with an operation current of 15mA (typ.) and a standby current of 1µA (typ.) at 3.0V. The device is fully static and has a tri-state output.
Designed for low power applications, the AS6C62256 is particularly well-suited for battery back-up nonvolatile memory applications. It is available in a 28-pin SOP package and is fully compatible with competitor 3.3V and 5V products.
Key electrical characteristics include a maximum supply current of 45mA and a data retention voltage of 1.5V (min.). The operating temperature range is from -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.28 | $1.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating supply voltage range is 2.7 V to 5.5 V, with a typical nominal voltage of 3.3 V.

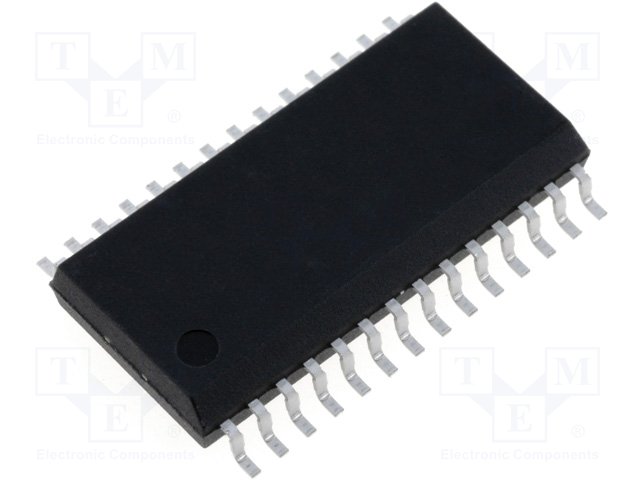

The device is housed in a 28-pin 330 mil SOP (Small Outline Package) for surface mount mounting.
The operating temperature range is -40 °C to +85 °C.
The memory size is 256 kbit (32K x 8).
The maximum access time is 55 ns.
The typical standby current is 1 µA at VCC = 3.0 V.
