| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
33,326 pcs
|
33326 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Access Time | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel |

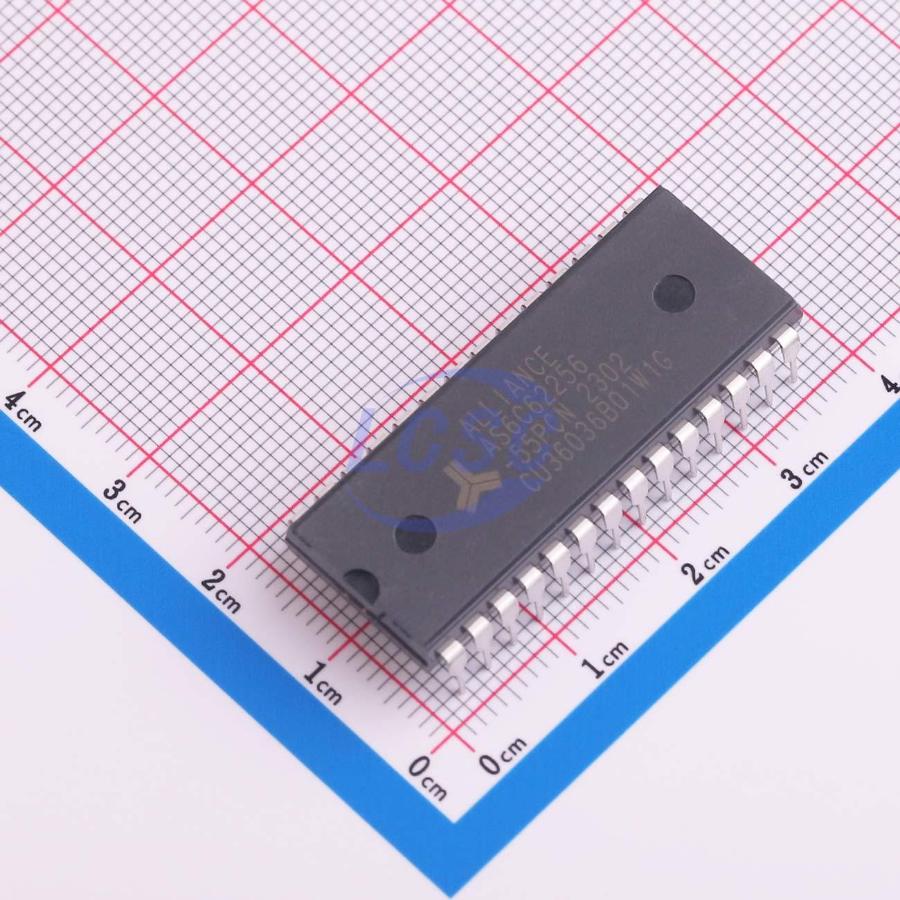

The Alliance AS6C62256-55PCN is a 262,144-bit low power CMOS static random access memory organized as 32,768 words by 8 bits. It is fabricated using high-performance, high-reliability CMOS technology.
Key features include an access time of 55ns, low power consumption with an operation current of 15mA (typical) at 3.0V, and a standby current of 1µA (typical) at 3.0V. The device operates with a wide power supply range of 2.7V to 5.5V and is fully compatible with 3.3V and 5V competitor products. Data retention is supported down to 1.5V.
This SRAM is designed for low power applications and is particularly well-suited for battery-backed nonvolatile memory applications. It offers fully static operation and a tri-state output. The operating temperature range is 0°C to 70°C.
Available in multiple package types including 28-pin 600 mil PDIP, 28-pin 330 mil SOP, and 28-pin 8mm x 13.4mm sTSOP. All inputs and outputs are TTL compatible.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.11 | $15.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.7 V to 5.5 V.
0°C to 70°C.
28-pin PDIP, 28-pin SOP, and 28-pin sTSOP.
55 ns.
15 mA at VCC = 3.0V.
1 µA at VCC = 3.0V.
1.5 V.
