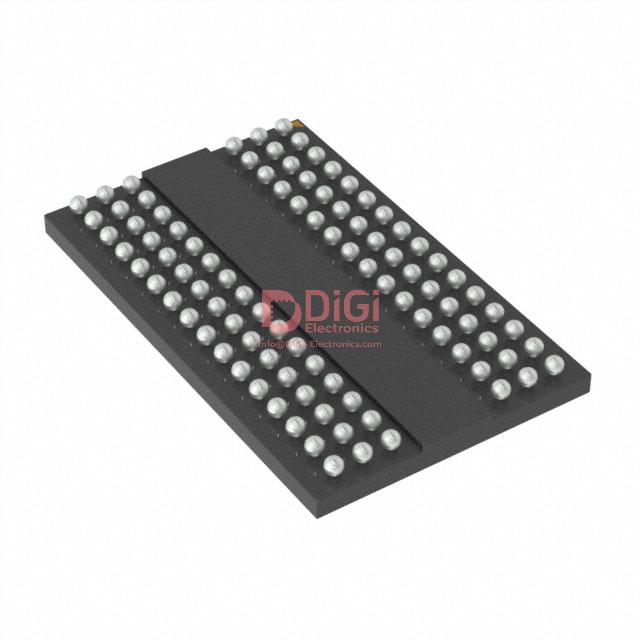

AS4C512M8D4-83BIN The AS4C512M8D4-83BIN is a 4Gbit DDR4 SDRAM from Alliance Memory with a 1.2GHz clock frequency and parallel interface. It operates from 1.14V to 1.26V and is available in a 78-ball FBGA package.
Mfr Part #:

AS4C512M8D4-83BIN

Available from 1 distributors
Mfr Name: Alliance Memory, Inc.
Alliance Memory, Inc.
The AS4C512M8D4-83BIN is a 4Gbit DDR4 SDRAM from Alliance Memory with a 1.2GHz clock frequency and parallel interface. It operates from 1.14V to 1.26V and is available in a 78-ball FBGA package.
✓ Total Stock: 210 pcs
$ Price Range: $1.24

AS4C512M8D4-83BIN Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
210 pcs
On Request
210 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AS4C512M8D4-83BIN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Access Time
Clock Frequency
Memory Format
Memory Interface
Memory Organization
Memory Size
Memory Type
Mounting Type
Operating Temperature
Supplier Device Package
Technology
Voltage
Write Cycle Time
View Similar Products (0)

AS4C512M8D4-83BIN Description

Short technical summary and product information.

The AS4C512M8D4-83BIN is a 4Gbit DDR4 SDRAM memory device from Alliance Memory, organized as 512M x 8 bits. It features a high-speed parallel interface and a clock frequency of 1.2GHz, enabling fast data transfer rates. The memory is based on DRAM technology and uses a 1.2V core supply (VDD) with an additional 2.5V supply (VPP).



Key electrical characteristics include an access time of 18ns and a write cycle time of 15ns. The device supports burst lengths of 8 and 4 on the fly, with sequential or interleave burst types. CAS latency and additive latency are programmable. The operating temperature range is -40°C to 95°C (TC), with an average refresh period of 64ms (7.8μs per row) at lower temperatures, and 32ms (3.9μs) above 85°C.



This DDR4 SDRAM is suitable for a wide range of applications including computing, networking, and embedded systems that require high-speed, high-density memory. It is housed in a 78-ball FBGA package, which is compatible with surface mount assembly processes.

AS4C512M8D4-83BIN Quick Information

Product Type: SDRAM DDR4 Memory
Canonical Name: Alliance Memory AS4C512M8D4-83BIN 4Gbit SDRAM DDR4 Memory
Subcategory: SDRAM - DDR4

AS4C512M8D4-83BIN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AS4C512M8D4-83BIN Estimated Pricing

Qty Low High
1+ $1.24 $1.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

AS4C512M8D4-83BIN Features

  • 4Gbit DDR4 SDRAM memory capacity.
  • 512M x 8 memory organization.
  • 1.2GHz clock frequency operation.
  • 1.14V to 1.26V supply voltage.
  • 78-ball FBGA package mount.

AS4C512M8D4-83BIN Applications

  • Ideal for high-speed computing applications.
  • Suitable for networking and telecommunications.
  • Used in embedded systems requiring DDR4.
  • Designed for server and data center modules.

AS4C512M8D4-83BIN FAQs

7 frequently asked questions generated from this part’s specifications.
What is the memory capacity of the AS4C512M8D4-83BIN?

4 Gbit

What is the memory technology used?

SDRAM - DDR4

What is the clock frequency?

1.2 GHz

What is the operating voltage range?

1.14V to 1.26V

What is the operating temperature range?

-40°C to 95°C (TC)

What is the memory organization?

512M x 8

What is the access time?

18 ns
