| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
210 pcs
|
210 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Access Time | |
| Clock Frequency | |
| Clock Rate | |
| Halogen Free | |
| Memory Format | |
| Memory Interface | |
| Memory Organization | |
| Memory Size | |
| Memory Type | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Voltage | |
| Write Cycle Time |
The Alliance Memory AS4C256M8D3L-12BIN is a 2Gb Double-Data-Rate-3 (DDR3L) Synchronous DRAM (SDRAM). It is designed for high-speed operation with a data transfer rate of up to 1600 Mb/sec/pin.
Key electrical specifications include a clock frequency of 800MHz, an access time of 20 ns, and a write cycle time of 15 ns. The device operates with a power supply voltage of 1.35V and is backward compatible with 1.5V ±0.075V. It is internally configured as an eight-bank DRAM and organized as 256M x 8.

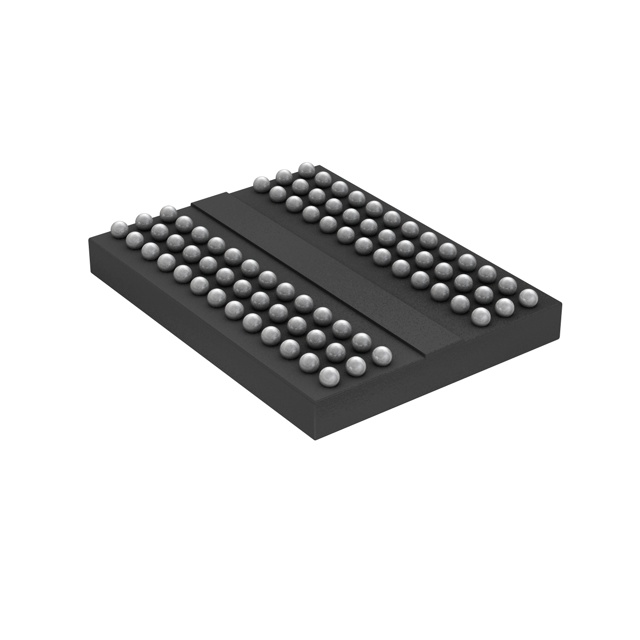

This component is housed in a 78-ball FBGA package measuring 8 x 10.5 x 1.2mm and is designed for surface mounting. The operating temperature range is -40°C to 95°C (TC).
The AS4C256M8D3L-12BIN complies with JEDEC standards and features like Auto Refresh and Self Refresh. It is also RoHS3 compliant and Pb and Halogen Free.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.24 | $1.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The memory size is 2 Gbit.
It is a Volatile DRAM.
The memory organization is 256M x 8.
The clock frequency is 800 MHz.
The operating voltage is 1.35V.
The operating temperature range is -40°C to 95°C (TC).
It is supplied in a 78-FBGA package.
