Mfr Part #:

AS4C16M16SA-6TIN

Mfr Name: Alliance

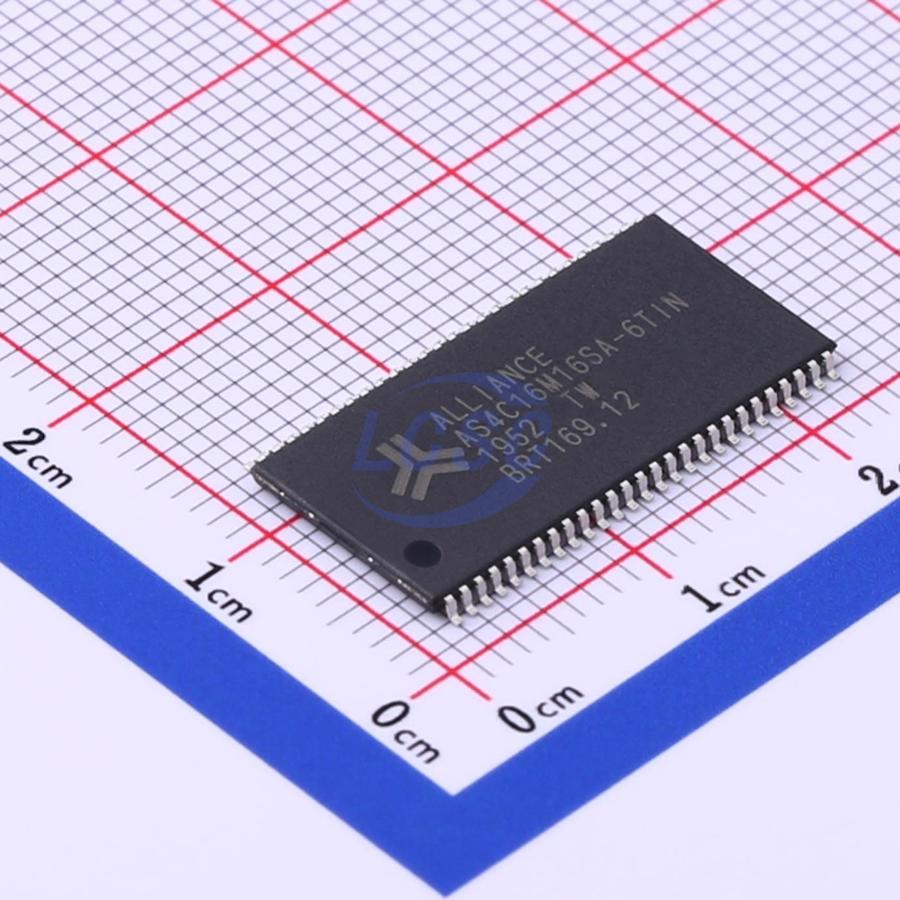

The Alliance AS4C16M16SA-6TIN is a 256Mb Synchronous DRAM with a 166MHz clock rate and 5ns access time. It operates at 3.3V and is available in a TSOP II package.

✓ Total Stock: 70,883 pcs

$ Price Range: $1.28

AS4C16M16SA-6TIN Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Innova Technologies ✓ Non-Authorised Inventory information	70,348 pcs On Request	70348 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	505 pcs On Request	505 pcs	On Request	1	On Request	On Request	21+	On Request	On Request
Spartce Electronics. ✓ Non-Authorised Inventory information	30 pcs On Request	30 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

AS4C16M16SA-6TIN Description

Short technical summary and product information.

The Alliance AS4C16M16SA-6TIN is a high-speed CMOS synchronous DRAM (SDRAM) with a density of 256 Mbits. It is internally configured as 4 Banks of 4M word x 16 DRAM, featuring a synchronous interface where all signals are registered on the positive edge of the clock signal.

Key electrical specifications include a fast clock rate of up to 166 MHz and an access time from clock of 5 ns. The device operates from a single +3.3V ±0.3V power supply and utilizes an LVTTL interface. Programmable mode registers allow for flexible configuration of CAS Latency (2 or 3), Burst Length (1, 2, 4, 8, or full page), and Burst Type (Sequential or Interleaved).

This SDRAM is designed for applications requiring high memory bandwidth. It supports Auto Refresh and Self Refresh functions, with 8192 refresh cycles required every 64ms. The AS4C16M16SA-6TIN is available in a 54-pin 400 mil plastic TSOP II package and is rated for an industrial operating temperature range of -40°C to 85°C.

AS4C16M16SA-6TIN Quick Information

Product Type: Synchronous DRAM

Series: AS4C

Canonical Name: Alliance AS4C16M16SA-6TIN 256Mb Synchronous DRAM

Subcategory: Synchronous DRAM

AS4C16M16SA-6TIN Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

AS4C16M16SA-6TIN Estimated Pricing

Qty	Low	High
1+	$1.28	$1.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

AS4C16M16SA-6TIN Features

256Mb high-speed CMOS synchronous DRAM.
Fast 166 MHz clock rate and 5 ns access time.
Single +3.3V power supply with LVTTL interface.
Industrial temperature range: -40°C to 85°C.
Available in a 54-pin TSOP II package.

AS4C16M16SA-6TIN Applications

Suitable for high memory bandwidth needs.
Ideal for embedded system memory expansion.
Used in performance-critical applications.
Supports flexible burst and latency configurations.

AS4C16M16SA-6TIN FAQs

7 frequently asked questions generated from this part’s specifications.

What is the memory density of the AS4C16M16SA-6TIN?

The AS4C16M16SA-6TIN has a density of 256Mb.

What is the operating voltage of the AS4C16M16SA-6TIN?

The operating voltage is 3.3V.

What is the maximum clock frequency of the AS4C16M16SA-6TIN?

The maximum clock frequency is 166 MHz.

What package options are available for the AS4C16M16SA-6TIN?

The AS4C16M16SA-6TIN is available in TSOP II and FBGA packages.

What are the operating temperature ranges for the AS4C16M16SA-6TIN?

The commercial temperature range is 0 to 70°C and the industrial range is -40 to 85°C.

What is the data width of the AS4C16M16SA-6TIN?

The data width is 16-bit.

What interface does the AS4C16M16SA-6TIN use?

The interface is LVTTL.

Category	New Products
Manufacturer Name	Alliance
Access Time	5 ns
Clock Rate	166 MHz
Density	256Mb
Industrial Grade	Yes
Interface	LVTTL
Lead Style	Gull-Wing
Memory Type	SDRAM
Number of Pins	54-pin
Operating Temperature	0 ~ 70° C
Pitch	400 mil
SVHC Present	Not Present
Voltage Supply	3.3V
