| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Frequency | |
| Halogen Free | |
| Memory Format | |
| Memory Interface | |
| Memory Organization | |
| Memory Size | |
| Memory Type | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Technology | |
| Voltage | |
| Write Cycle Time |

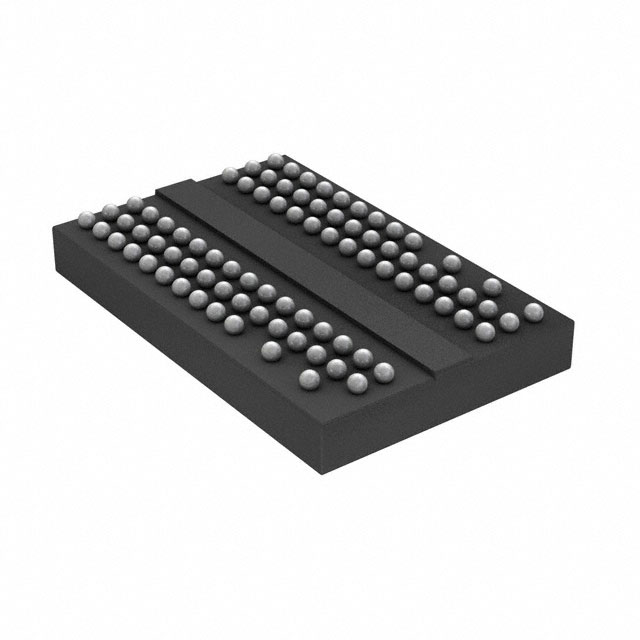

The AS4C128M16D2-25BIN is an advanced DDRII Synchronous DRAM (SDRAM) from Alliance Memory, Inc., organized as 128M x 16 bits. It delivers high-speed data transfer rates with a system frequency up to 400 MHz.
Key features include 8 internal banks for concurrent operation, a 4-bit prefetch architecture, and programmable CAS Latency options from 3 to 7. The device supports programmable Additive Latency from 0 to 6, with Write Latency equal to Read Latency -1. It also offers programmable Burst Lengths of 4 and 8, along with automatic and controlled precharge commands.
This DRAM operates with a JEDEC power supply of 1.8V ± 0.1V and VDDQ of 1.8V ± 0.1V. It is available in an 84-ball FBGA package suitable for surface mounting. The operating temperature range is -40°C to 95°C (TC).
The AS4C128M16D2-25BIN is designed for applications requiring high performance memory, such as in computing, networking, and consumer electronics. Its architecture allows for efficient data handling and synchronization with system clocks.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.24 | $1.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The clock frequency is 400 MHz.
The memory size is 2Gbit, organized as 128M x 16.
The operating voltage is 1.7V to 1.9V.
It is supplied in an 84-FBGA package.
The operating temperature range is -40°C to 95°C (TC).
Yes, it is RoHS3 Compliant.
The MSL is 1 Unlimited.
