| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
372,197 pcs
|
372197 pcs | On Request | 1 | On Request | On Request | 1552+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Type | |
| Voltage |

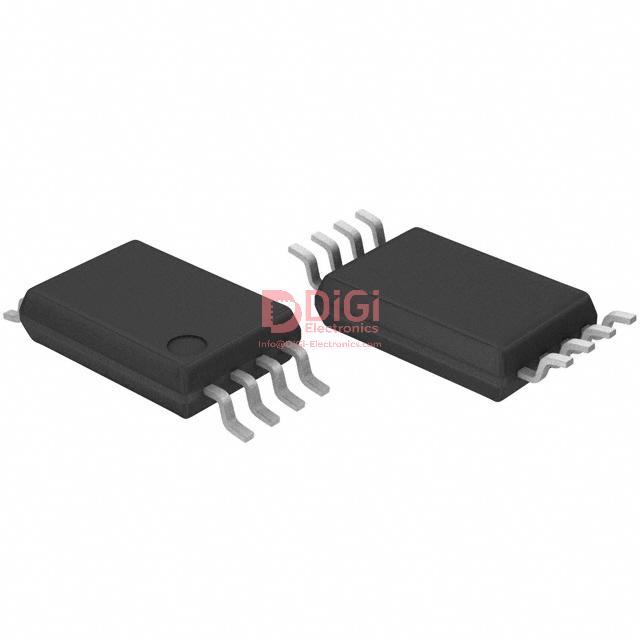

The AS393MTR-E1 is a dual general purpose comparator from Diodes Incorporated, part of the AS393/393A family. It features two independent precision voltage comparators with a typical offset voltage of 1.0 mV and high gain. Designed for single-supply operation over a wide voltage range of 2V to 36V, it also supports dual supplies from ±1V to ±18V. The low supply current drain of 0.6 mA typical is independent of supply voltage magnitude.
Key electrical characteristics include a low input bias current of 25 nA typical, low input offset current of ±5 nA typical, and an output saturation voltage of 200 mV at 4 mA. The input common mode voltage range includes ground, and the differential input voltage range equals the power supply voltage. The open collector output allows flexible interfacing with various logic levels.
The comparator is offered in an 8-SOIC (0.154", 3.90 mm width) surface mount package, suitable for automated assembly. It operates over a temperature range of -40°C to 85°C. The device is RoHS3 compliant and lead-free as per the datasheet.
2V to 36V for single supply, ±1V to ±18V for dual supplies.
8-SOIC (0.154", 3.90mm width) surface mount package.
-40°C to 85°C.
Yes, RoHS3 compliant and lead-free.
Open collector output.
1.0 mV typical.
0.6 mA typical.
